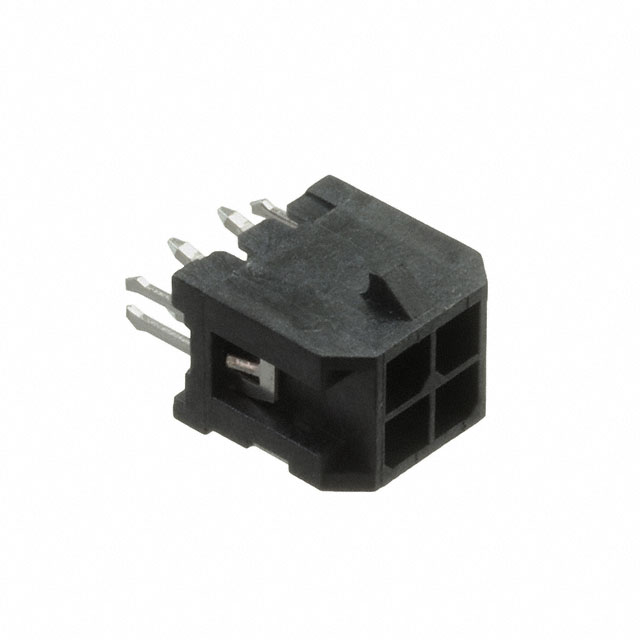

DML-04-A-V-T-A-BL

Active

Adam Tech

CONN HEADER VERT 4POS 3MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 4POS 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	DML-04-A-V-T-A-BL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VAC

Part	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Connector Type	Insulation Material	Number of Positions Loaded	Contact Shape	Number of Positions	Number of Rows	Voltage Rating	Shrouding	Contact Finish - Post	Style	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Termination	Fastening Type	Contact Material	Material Flammability Rating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)
Adam Tech DML-04-A-V-T-A-BL	0.118 in	3 mm	Male Pin	3 mm	0.118 in	Varies by Wire Gauge	Header	Thermoplastic	All	Square	4	2	250 VAC	Shrouded - 4 Wall	Tin	Board to Cable/Wire	9.91 mm	0.39 in	3.2 mm	0.126 in	Through Hole	Kinked Pin Solder	Locking Ramp	Brass	UL94 V-0	Black
Adam Tech DML-04-A-V-T-TSMT-PP-T/R	0.118 in	3 mm	Male Pin	3 mm	0.118 in		Header	Thermoplastic	All	Square	4	2	250 VAC	Shrouded - 4 Wall	Tin	Board to Cable/Wire	9.91 mm	0.39 in			Surface Mount	Solder	Locking Ramp	Brass	UL94 V-0	Black	-25 °C	105 ░C	Solder Retention	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.67
