895-140-556-808

Active

EDAC Inc.

CONN EDGE DUAL FML 140POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

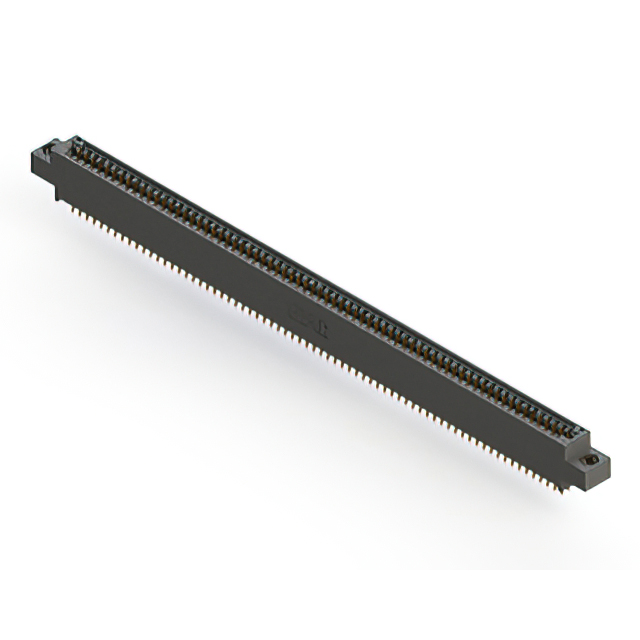

895-140-556-808

Active

EDAC Inc.

CONN EDGE DUAL FML 140POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-140-556-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	140
Number of Positions/Bay/Row [custom]	70
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-140 Series

...

Part	Contact Material	Contact Finish	Termination	Card Type	Contact Type	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Positions	Gender	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Color	Material - Insulation	Number of Positions/Bay/Row [custom]	Flange Feature	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 895-140-540-207	Copper Alloy	Gold	Wire Wrap	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	Flush Mount M3 Threaded Insert Top Opening	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-140-556-808	Copper Alloy	Gold	Solder	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 895-140-525-203	Copper Alloy	Gold	Solder	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	Floating Bobbin Flush Mount	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in		0.116 in	2.95 mm
EDAC Inc. 895-140-500-201	Copper Alloy	Gold	Solder Eyelet(s)	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70		2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-140-525-812	Copper Alloy	Gold	Solder	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	Side Mount Opening Unthreaded	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in				3.25 mm	0.128 in
EDAC Inc. 895-140-541-804	Copper Alloy	Gold	Wire Wrap	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	Top Mount Opening Unthreaded	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in		0.156 in	3.96 mm
EDAC Inc. 895-140-556-208	Copper Alloy	Gold	Solder	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender
EDAC Inc. 895-140-540-812	Copper Alloy	Gold	Wire Wrap	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	Side Mount Opening Unthreaded	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in				3.25 mm	0.128 in
EDAC Inc. 895-140-541-508	Copper Alloy	Gold	Wire Wrap	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Through Hole	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 895-140-556-803	Copper Alloy	Gold	Solder	Non Specified - Dual Edge	Cantilever	2	125 °C	-40 °C	Dual	140	Female	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	Black	Polyphenylene Sulfide (PPS)	70	Floating Bobbin Top Mount Opening	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Extender	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 142.71
Newark	Each	1	$ 171.27
		100	$ 111.82
		250	$ 97.09
		500	$ 84.27
		1000	$ 67.38

Description

General part information

895-140 Series

140 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Documents

Technical documentation and resources
