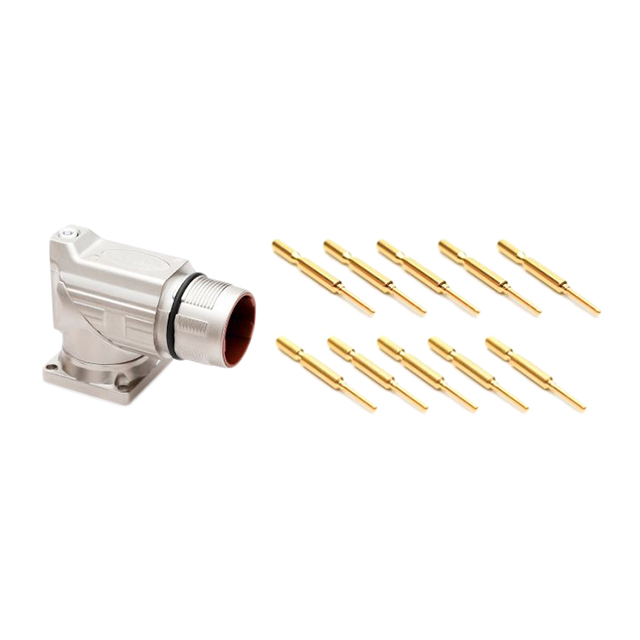

MB7RJN0901-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 9POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade DIN M23/M40 +1

MB7RJN0901-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 9POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet MotionGrade DIN M23/M40 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB7RJN0901-KIT

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	10 A, 30 A
Features	Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Termination	Crimp
Voltage Rating	250 VAC

MB7RJN Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Finish	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Shell Material	Voltage Rating	Features	Ingress Protection	Color	Shell Size - Insert	Termination	Mounting Feature	Orientation	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Primary Material	Contact Shape	Insert Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Type	Fastening Type	Contact Size	Note	Housing Color	Shielding	Contact Type
Amphenol Sine Systems Corp MB7RJN0901-KIT	-20 C	130 °C	Male Pins Receptacle	Nickel	Gold	Panel Mount Right Angle	10 A 30 A	Zinc Die Cast	250 VAC	Backshell Rotatable	IP67 - Dust Tight Waterproof	Silver	M23-9	Crimp	Flange	N	4	5	9	Metal
Amphenol Sine Systems Corp MB7RJN0602-KIT	-20 C	130 °C	Male Pins Receptacle	Nickel	Gold	Panel Mount Right Angle	28 A	Zinc Die Cast	630 VAC/DC	Backshell Rotatable	IP67 - Dust Tight Waterproof	Silver	M23-6	Crimp	Flange	N			6	Metal
Amphenol Sine Systems Corp MB7RJN0802-KIT	-20 C	130 °C	Male Pins Receptacle	Nickel	Gold	Panel Mount Right Angle	10 A 30 A	Zinc Die Cast	250 VAC	Backshell Rotatable	IP67 - Dust Tight Waterproof	Silver	M23-8	Crimp	Flange	N			8	Metal
Amphenol Sine Systems Corp MB7RJN0902-KIT	-20 C	130 °C	Male Pins Receptacle	Nickel	Gold	Panel Mount Right Angle	10 A 30 A	Zinc Die Cast	250 VAC	Backshell Rotatable	IP67 - Dust Tight Waterproof	Silver	M23-9	Crimp	Flange	N	4	5	9	Metal
Amphenol Sine Systems Corp MB7RJN0802	-20 C	130 °C	Receptacle Housing	Nickel		Panel Mount Right Angle		Zinc Die Cast		Backshell Rotatable	IP67 - Dust Tight Waterproof		M23-8		Flange	Keyed	3				Circular	Polyamide (PA66) Nylon 6/6	UL94 V-0	8	4	PE	For Male Pins	Push-Twist	1 mm 2 mm	Contacts Not Included	Silver	Shielded	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.96
		10	$ 43.09
		25	$ 41.44
		50	$ 40.05
		100	$ 37.84
		250	$ 36.74

Description

General part information

MB7RJN Series

9 (5 + 4 Power) Position Circular Connector Receptacle, Male Pins Crimp
