CO-058BNCX200-005

Active

AMPHENOL CABLES ON DEMAND

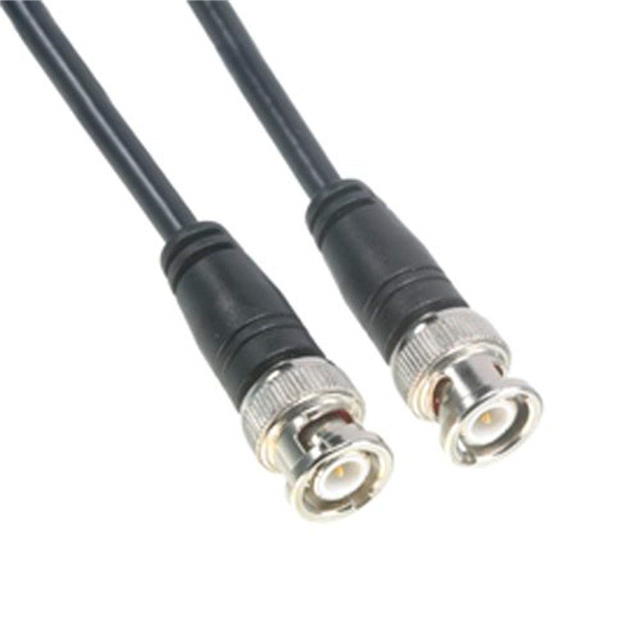

RF / COAXIAL CABLE ASSEMBLY, CABLE RG58C/U, BNC PLUG TO BNC PLUG, RG58C, 50 OHM, 5 FT, 1.52 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CO-058BNCX200-005

Active

AMPHENOL CABLES ON DEMAND

RF / COAXIAL CABLE ASSEMBLY, CABLE RG58C/U, BNC PLUG TO BNC PLUG, RG58C, 50 OHM, 5 FT, 1.52 M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CO-058BNCX200-005

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	BNC to BNC

CO-058BNCX Series

Part	Cable Type	1st Contact Gender	Length	Length	Length	2nd Connector Mounting Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Color	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Cable Impedance	Features	2nd Connector
AMPHENOL CABLES ON DEMAND CO-058BNCX200-004	RG-58	Male	1200 mm	4 ft	48 in	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-003	RG-58	Male	91.44 cm		36 in	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-001	RG-58	Male	304.8 mm		12 "	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-005	RG-58	Male	1.5 m	5 ft	5 '	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-015	RG-58	Male	4.6 m	5 yd	15 ft	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-012	RG-58	Male				Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-006	RG-58	Male	1.8 m	6 ft	72 in	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-002	RG-58	Male	609.6 mm		24 "	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-025	RG-58	Male	7.6 m	25 ft	25 ft	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug
AMPHENOL CABLES ON DEMAND CO-058BNCX200-050	RG-58	Male	15.2 m	50 ft	50 ft	Free Hanging (In-Line)	BNC to BNC	85 °C	-40 °C	BNC Plug	Black	Male	Free Hanging (In-Line)	4 GHz	50 Ohms	Shielded	BNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.20
		10	$ 14.04
		25	$ 13.31
		50	$ 13.12
		100	$ 11.57
		250	$ 10.80
		500	$ 10.57
Newark	Each	1	$ 14.40
		5	$ 13.56
		10	$ 12.72
		25	$ 11.73
		50	$ 11.02
		100	$ 10.37
		250	$ 9.56

Description

General part information

CO-058BNCX Series

Cable Assembly Coaxial BNC to BNC RG-58 60.0" (1.5m) 5.0'
