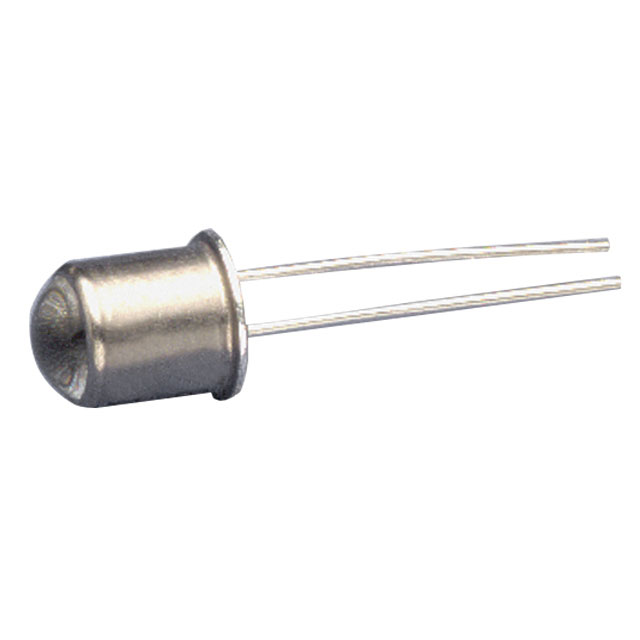

VTB1113BH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 580NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTB1113BH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 580NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTB1113BH |
|---|---|
| Active Area | 1.6 mm˛ |
| Current - Dark (Typ) | 20 pA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Lensed Metal Can, TO-46-2 |
| Spectral Range [Max] | 720 nm |
| Spectral Range [Min] | 330 nm |
| Viewing Angle | 30 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Wavelength | 580 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.03 | |
| 100 | $ 9.38 | |||
Description
General part information
VTB1113 Series
Photodiode 580nm 30° Radial, Lensed Metal Can, TO-46-2
