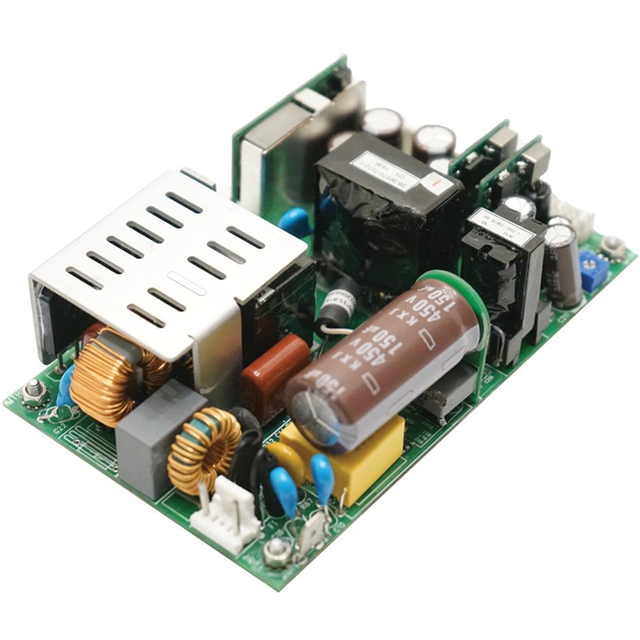

GB130QA-C

Active

SL POWER / Advanced Energy

SWITCHING POWER SUPPLIES MED 130W QUAD 5V@16A 12V@4A +/-12V@1.2A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

GB130QA-C

Active

SL POWER / Advanced Energy

SWITCHING POWER SUPPLIES MED 130W QUAD 5V@16A 12V@4A +/-12V@1.2A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GB130QA-C

Applications	ITE (Commercial), Medical
Approval Agency	cURus, DEMKO, CE
Current - Output 1	12 A
Current - Output 2	3 A
Current - Output 4	1 A
Efficiency	87 %
Features	PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	120 W
Power (Watts)	157 W
Size / Dimension [x]	135.5 mm
Size / Dimension [x]	5.33 "
Size / Dimension [y]	3.46 "
Size / Dimension [y]	87.8 mm
Size / Dimension [z]	45.4 mm
Size / Dimension [z]	1.79 "
Standard Number	60950-1, 60601-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V
Voltage - Output 4	12 V

GB130Q-C Series

Switching Power Supplies Med 130W Quad 5V@16A 24V@3A +/-15V@1.0A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 4	Standard Number	Current - Output 1	Mounting Type	Current - Output 2	Voltage - Isolation	Voltage - Output 4	Voltage - Output 3	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Type	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Features	Efficiency	Power (Watts)	Power (Watts)	Approval Agency	Voltage - Output 2
SL POWER / Advanced Energy GB130QC-C	-20 °C	70 °C	1 A	60601-1 60950-1	12 A	Chassis Mount	3 A	4000 V	15 V	-15 V	4	3.46 "	135.5 mm	5.33 "	45.4 mm	87.8 mm	1.79 "	Enclosed	ITE (Commercial) Medical	90 VAC	264 VAC	5 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	87 %	164 W	126 W	CE cURus DEMKO	12 V
SL POWER / Advanced Energy GB130QA-C	-20 °C	70 °C	1 A	60601-1 60950-1	12 A	Chassis Mount	3 A	4000 V	12 V	-12 V	4	3.46 "	135.5 mm	5.33 "	45.4 mm	87.8 mm	1.79 "	Enclosed	ITE (Commercial) Medical	90 VAC	264 VAC	5 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	87 %	157 W	120 W	CE cURus DEMKO	12 V
SL POWER / Advanced Energy GB130QE-C	-20 °C	70 °C	1 A	60601-1 60950-1	12 A	Chassis Mount	2 A	4000 V	15 V	-15 V	4	3.46 "	135.5 mm	5.33 "	45.4 mm	87.8 mm	1.79 "	Enclosed	ITE (Commercial) Medical	90 VAC	264 VAC	5 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	87 %		138 W 188 W	CE cURus DEMKO	24 V
SL POWER / Advanced Energy GB130QA	-20 °C	70 °C	1 A	60601-1 60950-1	12 A	Chassis Mount	3 A	4000 V	12 V	-12 V	4	3 "	127 mm	5 in	31.5 mm	76.2 mm	1.24 "	Open Frame	ITE (Commercial) Medical	90 VAC	264 VAC	5 V	Adjustable Output PFC Remote On/Off Standby Output Universal Input	87 %	157 W	120 W	CE cURus DEMKO	12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 171.31
		5	$ 163.16
		10	$ 159.77
		40	$ 153.20
Sager	N/A	1	$ 142.90
		5	$ 140.97
		8	$ 137.26
		18	$ 133.74
		40	$ 132.05

Description

General part information

GB130Q-C Series

Switching Power Supplies Med 130W Quad 5V@16A 24V@3A +/-15V@1.0A

Documents

Technical documentation and resources

Datasheet

Document
