PX0727/S

Active

BULGIN LIMITED

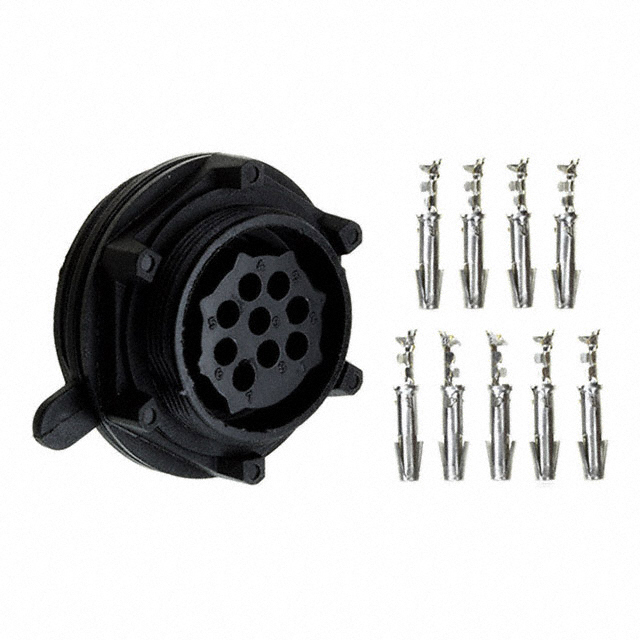

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 9 CONTACTS, CRIMP SOCKET

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 9 CONTACTS, CRIMP SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	PX0727/S

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Number of Positions	9
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	150 VAC

Part	Shielding	Primary Material	Connector Type	Number of Positions	Termination	Material Flammability Rating	Orientation	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Insert Material	Color	Contact Material	Current Rating (Amps)	Voltage Rating
BULGIN LIMITED PX0727/S	Unshielded	Plastic	Receptacle Female Sockets	9	Crimp	UL94 HB	Keyed	Glass Filled Nylon Polyamide (PA)	-20 C	70 °C	IP68 IP69K	Nylon Polyamide (PA)	Black	Copper Alloy	5 A	150 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 (Power) Position Circular Connector Receptacle, Female Sockets Crimp
