HHBC8S-0R6A0024V - HHBC8S-0R6A0024V

HHBC8S-0R6A0024V

Active
KEMET

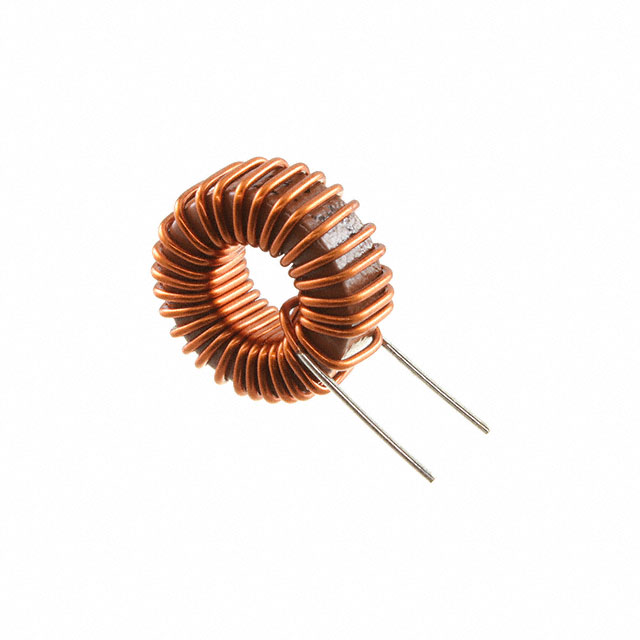

INDUCTOR LINE FILTER TOROID 24UH 20% 100KHZ 2A 0.0411OHM DCR RDL TRAY

Deep-Dive with AI

DocumentsHHBC8S-0R6A0024V SpecKEM_LF0050_HHBC.pdf+1

Technical Specifications

Parameters and characteristics for this part

SpecificationHHBC8S-0R6A0024V
Current Rating (Max) [Max]2 A
DC Resistance (DCR) (Max) [Max]41.1 mOhm
Height (Max) [Max] [z]16 mm
Height (Max) [Max] [z]0.63 in
Inductance @ Frequency24 µH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseVertical, No Base
Package / Case2 Lead
Size / Dimension [diameter]0.63 in
Size / Dimension [diameter]16 mm

HHBC8S Series

PartPackage / CasePackage / CaseSize / Dimension [diameter]Size / Dimension [diameter]Operating Temperature [Max]Operating Temperature [Min]Inductance @ FrequencyMounting TypeHeight (Max) [Max]Height (Max) [Max]DC Resistance (DCR) (Max) [Max]Number of LinesCurrent Rating (Max) [Max]Height (Max) [Max] [z]Height (Max) [Max] [z]
KEMET
HHBC8S-0R6A0043V
No Base
Vertical
2 Lead
0.669 in
17 mm
125 °C
-40 °C
43 µH
Through Hole
17 mm
0.669 in
54.1 mOhm
2
2 A
KEMET
HHBC8S-0R6A0024V
No Base
Vertical
2 Lead
0.63 in
16 mm
125 °C
-40 °C
24 µH
Through Hole
41.1 mOhm
2
2 A
16 mm
0.63 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 26$ 2.48
DigikeyBulk 700$ 1.60

Description

General part information

HHBC8S Series

24 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 41.1mOhm
