P090S-14T20BR10K

Active

TT Electronics/BI

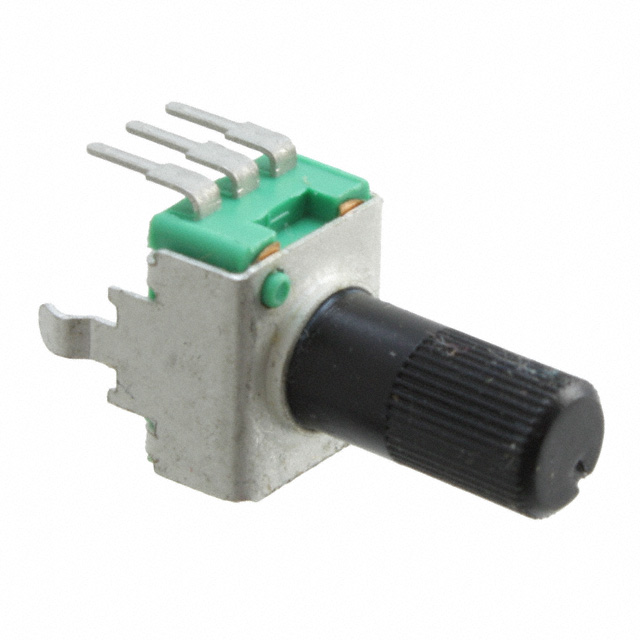

POT 10K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P090S-14T20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/32W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P090S-14T20BR10K

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [z]	20 mm
Actuator Length [z]	0.787 in
Actuator Type	Knurled
Adjustment Type	Top Adjustment
Built in Switch	Detent
Mounting Type	Through Hole
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.03125 W
Power (Watts)	30 mW
Resistance (Ohms)	10k
Resistive Material	Conductive Plastic
Rotation	280 °
Size - Body [x]	11 mm
Size - Body [x]	0.433 "
Size - Body [y]	9.8 mm
Size - Body [y]	0.386 "
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

P090S Series

Part	Mounting Type	Adjustment Type	Power (Watts)	Power (Watts)	Number of Gangs	Number of Turns	Tolerance	Actuator Length [x]	Actuator Length [x]	Resistive Material	Taper	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Rotation	Resistance (Ohms)	Actuator Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Termination Style	Resistance (Ohms)	Actuator Length [z]	Actuator Length [z]	Built in Switch
TT Electronics/BI P090S-04T25BR10K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %	0.984 in	25 mm	Conductive Plastic	Linear	11 mm	9.8 mm	0.433 "	0.386 "	280 °	10k	Knurled	0.236 in	6 mm	Board Locks PC Pins
TT Electronics/BI P090S-04F30BR20K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Linear	11 mm	9.8 mm	0.433 "	0.386 "	280 °		Flatted	0.236 in	6 mm	Board Locks PC Pins	20 kOhms	20 mm	0.787 in
TT Electronics/BI P090S-02T20AR10K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Logarithmic	11 mm	9.8 mm	0.433 "	0.386 "	280 °	10k	Knurled	0.236 in	6 mm	Board Locks PC Pins		20 mm	0.787 in
TT Electronics/BI P090S-14T20BR10K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Linear	11 mm	9.8 mm	0.433 "	0.386 "	280 °	10k	Knurled	0.236 in	6 mm	Board Locks PC Pins		20 mm	0.787 in	Detent
TT Electronics/BI P090S-04T20CR10K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Reverse Logarithmic	11 mm	9.8 mm	0.433 "	0.386 "	280 °	10k	Knurled	0.236 in	6 mm	Board Locks PC Pins		20 mm	0.787 in
TT Electronics/BI P090S-14F20BR10K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Linear	11 mm	9.8 mm	0.433 "	0.386 "	280 °	10k	Flatted	0.236 in	6 mm	Board Locks PC Pins		20 mm	0.787 in	Detent
TT Electronics/BI P090S-04T20BR50K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Linear	11 mm	9.8 mm	0.433 "	0.386 "	280 °		Knurled	0.236 in	6 mm	Board Locks PC Pins	50 kOhms	20 mm	0.787 in
TT Electronics/BI P090S-04K25BR10K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %	0.984 in	25 mm	Conductive Plastic	Linear	11 mm	9.8 mm	0.433 "	0.386 "	280 °	10k	Knurled	0.157 in	4 mm	Board Locks PC Pins
TT Electronics/BI P090S-04T20AR50K	Through Hole	Top Adjustment	0.03125 W	30 mW	1	1	20 %			Conductive Plastic	Logarithmic	11 mm	9.8 mm	0.433 "	0.386 "	280 °		Knurled	0.236 in	6 mm	Board Locks PC Pins	50 kOhms	20 mm	0.787 in
