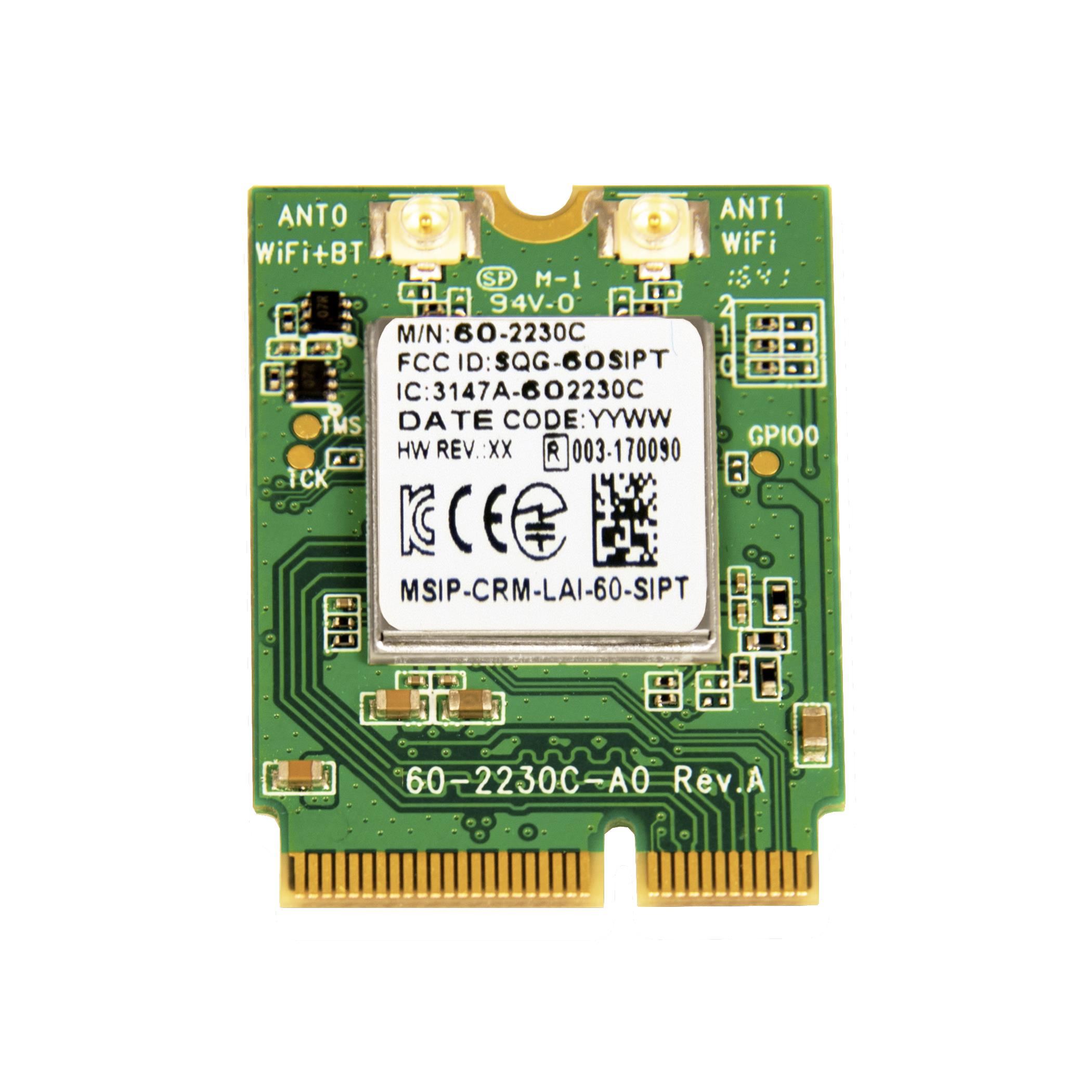

ST60-2230C-U

Active

Ezurio LLC

WLAN+BT MODULE 2412MHZ TO 2484MHZ/5150MHZ TO 5925MHZ 75-PIN TRAY

Deep-Dive with AI

Search across all available documentation for this part.

ST60-2230C-U

Active

Ezurio LLC

WLAN+BT MODULE 2412MHZ TO 2484MHZ/5150MHZ TO 5925MHZ 75-PIN TRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST60-2230C-U

Antenna Type	Antenna Not Included, U.FL
Data Rate	866.7 Mbps
Frequency [Max]	5.925 GHz, 2.484 GHz
Frequency [Min]	2.412 GHz, 5.15 GHz
Modulation	DSSS, 64QAM, QPSK, BPSK, OFDM, DQPSK, DBPSK, 256QAM, CCK, 16QAM
Mounting Type	Card Edge
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Package / Case	Module
Power - Output	18 dBm
Protocol	Bluetooth v5.1, Class 1 and 2, 802.11a/b/g/n/ac
RF Family/Standard	WiFi, Bluetooth
Sensitivity	-95 dBm
Serial Interfaces	UART, USB
Utilized IC / Part	88PG823, 88W8997
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	2.97 V

ST60-2230 Series

Part	Protocol	Data Rate	Sensitivity	Mounting Type	Modulation	Serial Interfaces	Frequency [Min]	Frequency [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	RF Family/Standard	Power - Output	Operating Temperature [Min]	Operating Temperature [Max]	Antenna Type	Utilized IC / Part	Package / Case	Frequency
Ezurio LLC ST60-2230C-UU	802.11a/b/g/n/ac Bluetooth v5.1 Class 1 and 2	866.7 Mbps	-95 dBm	Card Edge	16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	USB	2.412 GHz 5.15 GHz	2.484 GHz 5.925 GHz	2.97 V	3.63 V	Bluetooth WiFi	18 dBm	-30 °C	85 °C	Antenna Not Included U.FL	88PG823 88W8997	Module
Ezurio LLC ST60-2230C-PU	802.11a/b/g/n/ac Bluetooth v4.2 Class 1 and 2	866.7 Mbps	-95 dBm	Card Edge	16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	M.2 SDIO UART USB			2.97 V	3.63 V	Bluetooth WiFi	18 dBm	-30 ░C	85 °C	Antenna Not Included U.FL	88PG823 88W8997	Module	2.4 GHz 5 GHz
Ezurio LLC ST60-2230C-U	802.11a/b/g/n/ac Bluetooth v5.1 Class 1 and 2	866.7 Mbps	-95 dBm	Card Edge	16QAM 256QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	UART USB	2.412 GHz 5.15 GHz	2.484 GHz 5.925 GHz	2.97 V	3.63 V	Bluetooth WiFi	18 dBm	-30 °C	85 °C	Antenna Not Included U.FL	88PG823 88W8997	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.52

Description

General part information

ST60-2230 Series

Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.1, Class 1 and 2 Transceiver Module 2.412GHz ~ 2.484GHz, 5.15GHz ~ 5.925GHz Antenna Not Included, U.FL Card Edge

Documents

Technical documentation and resources

No documents available
