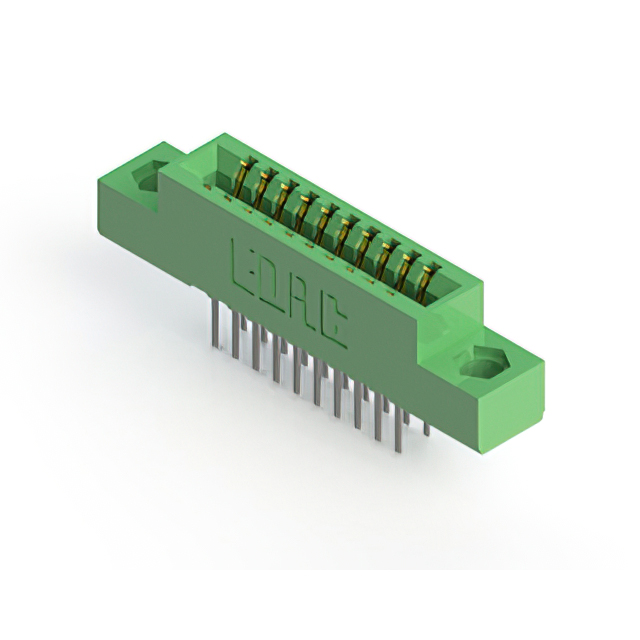

341-020-522-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
341-020-522-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-020-522-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-020 Series
| Part | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Rows | Number of Positions | Contact Finish | Flange Feature | Material - Insulation | Termination | Color | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Gender | Pitch [x] | Pitch [x] | Read Out | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 20 | 20 | 1 | 20 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 1 | Female | 2.54 mm | 0.1 in | Single | ||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 20 | Gold | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 2 | Female | 2.54 mm | 0.1 in | Dual | 10 | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 20 | Gold | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 2 | Female | 2.54 mm | 0.1 in | Dual | 10 | Card Extender | |||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 20 | 20 | 1 | 20 | Gold | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 1 | Female | 2.54 mm | 0.1 in | Single | ||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 20 | Gold | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 2 | Female | 2.54 mm | 0.1 in | Dual | 10 | |||||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 20 | 20 | 1 | 20 | Gold | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 1 | Female | 2.54 mm | 0.1 in | Single | 3.96 mm | 0.156 in | ||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 20 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 2 | Female | 2.54 mm | 0.1 in | Dual | 10 | Card Extender | |||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 20 | Gold | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 2 | Female | 2.54 mm | 0.1 in | Dual | 10 | ||||||
EDAC Inc. | Non Specified - Dual Edge | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 20 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 2 | Female | 2.54 mm | 0.1 in | Dual | 10 | Card Extender | |||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 20 | 20 | 20 | 1 | 20 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Solder | Green | Copper Alloy | 10 Áin | 0.25 Ám | Semi Bellows | 1 | Female | 2.54 mm | 0.1 in | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 9.46 | |
Description
General part information
341-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
