Q-3B00D0003003I

Active

Amphenol Custom Cable

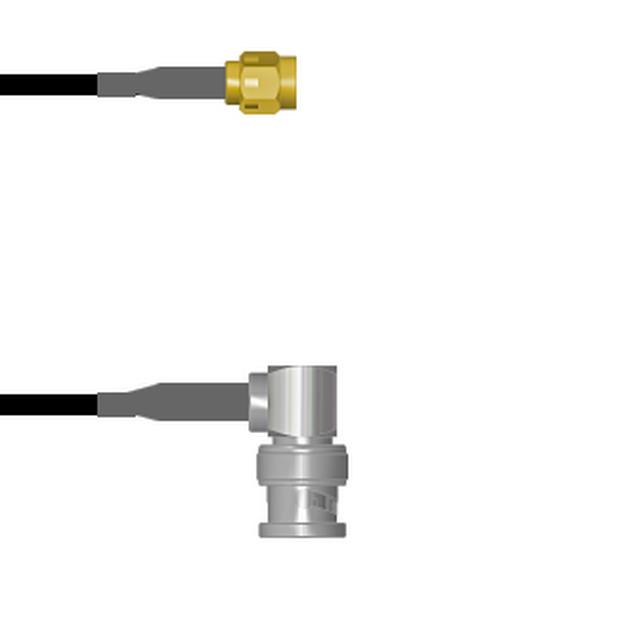

COAX CABLE BNC TO SMA 3"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO SMA 3"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Impedance	Frequency - Max [Max]	2nd Contact Gender	Features	Cable Impedance	2nd Connector	Overall Impedance	1st Connector	Cable Type	Style	2nd Connector Mounting Type	Length	Length	1st Contact Gender	1st Connector Mounting Type	Color	Length
Amphenol Custom Cable Q-3B00D0003003I	50 Ohms	1 GHz	Male	Shielded	50 Ohms	SMA Plug	50 Ohms	BNC Plug Right Angle	RG-174	BNC to SMA	Free Hanging (In-Line)	3 in	76.2 mm	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-3B00D0003048I	50 Ohms	1 GHz	Male	Shielded	50 Ohms	SMA Plug	50 Ohms	BNC Plug Right Angle	RG-174	BNC to SMA	Free Hanging (In-Line)	48 in	1200 mm	Male	Free Hanging (In-Line)	Black	4 ft
Amphenol Custom Cable Q-3B00D0003003M	50 Ohms	1 GHz	Male	Shielded	50 Ohms	SMA Plug	50 Ohms	BNC Plug Right Angle	RG-174	BNC to SMA	Free Hanging (In-Line)	118.1 in	3 m	Male	Free Hanging (In-Line)	Black	9.8 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial BNC to SMA RG-174 3.000" (76.20mm)

Technical documentation and resources

No documents available
