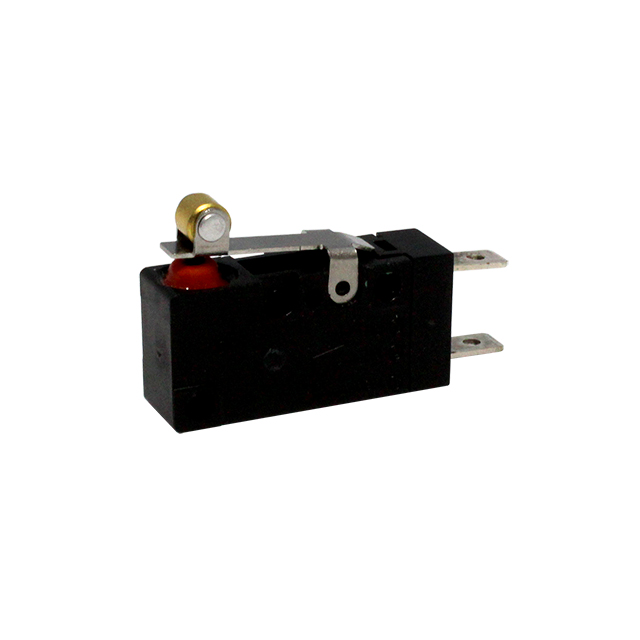

VM3SBQF3002L06

Active

CIT Relay and Switch

SWITCH LIMIT SPST-NC 10A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VM3SBQF3002L06

Actuator Type	Roller, Lever
Circuit	SPST-NC
Differential Travel	1 mm
Differential Travel	0.04 in
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	380 gf
Operating Position	20.3 mm
Operating Position	0.799 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.3 mm
Overtravel	0.012 in
Pretravel	0.067 in
Pretravel	1.7 mm
Release Force	160 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

VM3SB Series

Part	Mechanical Life	Overtravel	Overtravel	Voltage Rating - AC	Actuator Type	Differential Travel	Differential Travel	Release Force	Operating Position	Operating Position	Operating Force	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mounting Type	Ingress Protection	Pretravel	Pretravel	Switch Function	Electrical Life	Overtravel	Operating Position
CIT Relay and Switch VM3SBQF3003L04	1000000 Cycles	0.02 in	0.5 mm	125 V	Lever Straight	1 mm	0.04 in	250 gf	15 mm	0.591 in	300 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	2 mm	0.08 in	On-Mom	50000 Cycles
CIT Relay and Switch VM3SBGF3002L01	1000000 Cycles	0.031 in	0.8 mm	125 V	Lever Roller	1.3 mm	0.05 in		20.2 mm	0.795 in	210 gf	Quick Connect - 0.187" (4.7mm)	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	3 mm	0.118 in	On-Mom	50000 Cycles
CIT Relay and Switch VM3SBGF1803L04	1000000 Cycles	0.02 in	0.5 mm	125 V	Lever Straight	1 mm	0.04 in	80 gf	15.3 mm	0.602 "	190 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	1.8 mm	0.071 in	On-Mom	50000 Cycles
CIT Relay and Switch VM3SBQF1803L06	1000000 Cycles	0.02 in	0.5 mm	125 V	Lever Roller	1 mm	0.04 in		20.5 mm	0.807 in	240 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	1.5 mm	0.06 in	On-Mom	50000 Cycles
CIT Relay and Switch VM3SBQF3002L06	1000000 Cycles		0.012 in	125 V	Lever Roller	1 mm	0.04 in	160 gf	20.3 mm	0.799 in	380 gf	Quick Connect - 0.187" (4.7mm)	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	1.7 mm	0.067 in	On-Mom	50000 Cycles	0.3 mm
CIT Relay and Switch VM3SBGF3003L04	1000000 Cycles	0.02 in	0.5 mm	125 V	Lever Straight	1 mm	0.04 in	250 gf	15 mm	0.591 in	300 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	2 mm	0.08 in	On-Mom	50000 Cycles
CIT Relay and Switch VM3SBGF1802L06	1000000 Cycles	0.02 in	0.5 mm	125 V	Lever Roller	1 mm	0.04 in		20.5 mm	0.807 in	240 gf	Quick Connect - 0.187" (4.7mm)	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	1.5 mm	0.06 in	On-Mom	50000 Cycles
CIT Relay and Switch VM3SBGF3003L00	1000000 Cycles	0.024 in	0.6 mm	125 V	Round (Pin Plunger)	0.8 mm	0.031 "	250 gf	14.75 mm		320 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	2 mm	0.08 in	On-Mom	50000 Cycles		0.581 "
CIT Relay and Switch VM3SBGF1803L00	1000000 Cycles	0.031 in	0.8 mm	125 V	Round (Pin Plunger)	0.8 mm	0.031 "		14.75 mm		180 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	1.6 mm	0.063 in	On-Mom	50000 Cycles		0.581 "
CIT Relay and Switch VM3SBQF3003L01	1000000 Cycles	0.031 in	0.8 mm	125 V	Lever Roller	1.3 mm	0.05 in		20.2 mm	0.795 in	210 gf	Wire Leads	SPST-NC	-40 °C	120 °C	36 VDC	Chassis Mount	IP67 - Dust Tight Waterproof	3 mm	0.118 in	On-Mom	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 4.22

Description

General part information

VM3SB Series

Switch SPST-NC Chassis Mount

Documents

Technical documentation and resources

No documents available
