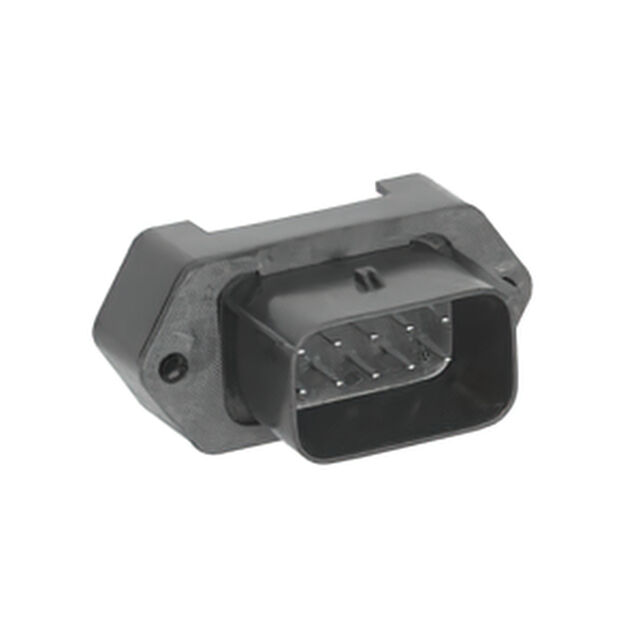

0194280005

Active

Molex

CONN HEADER VERT 10POS 5.84MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150L Series Assembly Instr Datasheet

0194280005

Active

Molex

CONN HEADER VERT 10POS 5.84MM

Deep-Dive with AI

DocumentsMX150L Series Assembly Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194280005

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Insulation Height	1.562 in
Insulation Height	39.66 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	5.84 mm
Pitch - Mating	0.23 in
Row Spacing - Mating	0.236 in
Row Spacing - Mating	6 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

019428 Series

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Shape	Applications	Termination	Insulation Color	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish - Mating	Features	Fastening Type	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions Loaded	Shrouding	Ingress Protection	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Contact Material	Number of Positions
Molex 0194280024	Panel Mount Through Hole	30 Áin	0.76 Ám	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2	Gold	Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in	16	Male Blade	Copper Alloy
Molex 0194280031	Panel Mount Through Hole	30 Áin	0.76 Ám	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2	Gold	Board Guide Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	12
Molex 0194280021	Panel Mount Through Hole	30 Áin	0.76 Ám	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2	Gold	Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	8
Molex 0194280015	Panel Mount Through Hole	100 çin	2.54 çm	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2		Board Guide Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	12
Molex 0194280009	Panel Mount Through Hole	100 çin	2.54 çm	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	1		Board Guide Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled			Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.094 "	27.8 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	2
Molex 0194280006	Panel Mount Through Hole	100 çin	2.54 çm	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2		Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	4
Molex 0194280039	Panel Mount Through Hole	30 Áin	0.76 Ám	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	1	Gold	Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled			Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	2
Molex 0194280004	Panel Mount Through Hole	100 çin	2.54 çm	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2		Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	6
Molex 0194280005	Panel Mount Through Hole	100 çin	2.54 çm	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2		Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in		Male Blade	Copper Alloy	10
Molex 0194280016	Panel Mount Through Hole	100 çin	2.54 çm	Header	Square	Automotive General Purpose Industrial	Solder	Black	Board to Cable/Wire	2.54 µm	100 µin	2		Board Guide Mounting Flange	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	6 mm	Tin	0.13 in	3.3 mm	UL94 V-0	All	Shrouded - 4 Wall	IP67 - Dust Tight Waterproof	1.562 in	39.66 mm	5.84 mm	0.23 in	16	Male Blade	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1200	$ 4.35

Description

General part information

019428 Series

Connector Header Panel Mount, Through Hole 10 position 0.230" (5.84mm)
