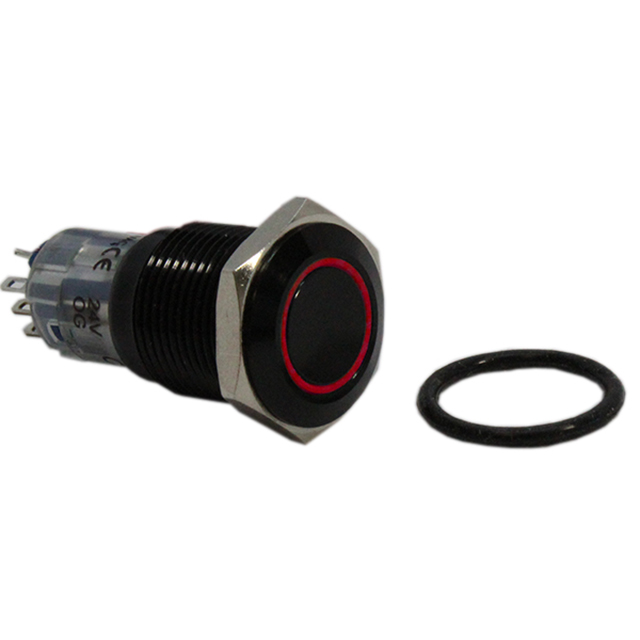

CH2NBBRNS

Active

CIT Relay and Switch

SWITCH PB DPDT 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB DPDT 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CH2NBBRNS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Black
Electrical Life	30000 Cycles
Illumination Type, Color	Red, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Type	Termination Style	Illumination Type, Color	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Marking	Circuit	Ingress Protection	Voltage Rating - DC	Electrical Life	Color - Actuator/Cap
CIT Relay and Switch CH2NBBRNS	Anti-Vandal Illuminated	16 mm	125 V	Button Flush Round	Solder Lug	LED Red	On-Mom	70 °C	-25 °C	Panel Mount Front	No Marking	DPDT	IP67 - Dust Tight Waterproof	24 V	30000 Cycles	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 14.62

General part information

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
