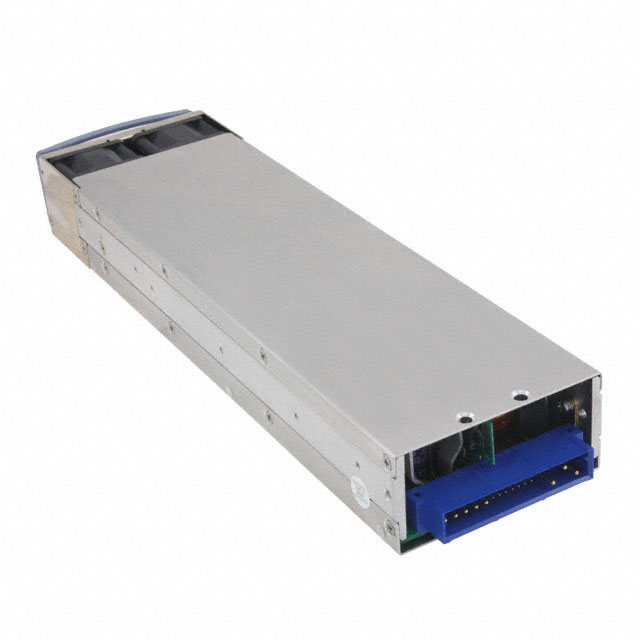

HFE1600-48

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 1600W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 1600W

Technical Specifications

Parameters and characteristics for this part

Specification	HFE1600-48

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	33 A
Efficiency	92 %
Features	Remote Sense, Adjustable Output, Remote On/Off, Universal Input, Load Sharing
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1600 W
Size / Dimension [x]	12.61 in
Size / Dimension [x]	320.4 mm
Size / Dimension [y]	3.4 in
Size / Dimension [y]	86.2 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.8 mm
Type	Front End
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Current - Output 1	Applications	Voltage - Isolation	Approval Agency	Features	Efficiency	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	For Use With/Related Products	Accessory Type
TDK-LAMBDA HFE1600-48	33 A	ITE (Commercial)	3000 V	CE	Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input	92 %	Rack Mount	85 VAC	265 VAC	48 V	Front End	1	-20 °C	71 °C	1600 W	1.61 "	3.4 in	12.61 in	86.2 mm	320.4 mm	40.8 mm
TDK-LAMBDA HFE1600-BP																						HFE1600 Series	Blanking Panel
TDK-LAMBDA HFE1600-32/S	47 A	ITE (Commercial)	3000 V	CE	Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input	90 %	Rack Mount	85 VAC	265 VAC	32 V	Front End	1	-20 °C	71 °C	1600 W	1.61 "	3.4 in	12.61 in	86.2 mm	320.4 mm	40.8 mm
TDK-LAMBDA HFE1600-LAN																						HFE1600 Series
TDK-LAMBDA HFE1600-S1U-TB																						HFE1600 Series	Power Shelf
TDK-LAMBDA HFE1600-D1U-TB																						HFE1600 Series	Rack Mount
TDK-LAMBDA HFE1600-KIT																						HFE1600 Series	Evaluation Board
TDK-LAMBDA HFE1600-12/S	133 A	ITE (Commercial)	3000 V	CE	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Universal Input	90 %	Rack Mount	85 VAC	265 VAC	12 V	Front End	1	-20 °C	71 °C	1600 W	1.61 "	3.4 in	12.61 in	86.2 mm	320.4 mm	40.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 48V 85 ~ 265 VAC Input
