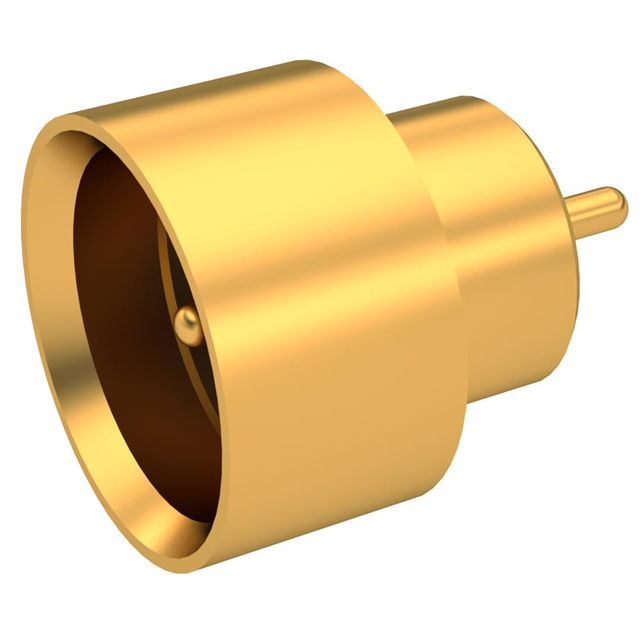

R222645300

Active

Radiall USA, Inc.

RF SMP CONNECTOR, 1 CONTACT(S), MALE, BOARD MOUNT, SOLDER TERMINAL, RECEPTACLE,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMP CONNECTOR, 1 CONTACT(S), MALE, BOARD MOUNT, SOLDER TERMINAL, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Body Finish	Number of Ports	Features	Shield Termination	Connector Type	Voltage Rating	Frequency - Max [Max]	Fastening Type	Housing Color	Mounting Type	Center Contact Plating	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles
Radiall USA, Inc. R222645300	Solder	Gold	1	Limited Detent	Solder	Male Pin Receptacle	335 V	18 GHz	Snap-On	Gold	Through Hole	Gold	50 Ohms	-65 ░C	165 °C	500
Radiall USA, Inc. R222645320W	Solder	Gold	1	Limited Detent	Solder	Male Pin Receptacle	335 V	40 GHz	Snap-On	Gold	Through Hole	Gold	50 Ohms	-65 ░C	165 °C	500
Radiall USA, Inc. R222645700	Solder	Gold	1	Smooth Bore	Solder	Male Pin Receptacle	335 V	18 GHz	Snap-On	Gold	Through Hole	Gold	50 Ohms	-65 ░C	165 °C	1000
Radiall USA, Inc. R222645300W	Solder	Gold	1	Limited Detent	Solder	Male Pin Receptacle	335 V	18 GHz	Snap-On	Gold	Through Hole	Gold	50 Ohms	-65 ░C	165 °C	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 39.09

General part information

SMP Connector Receptacle, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
