121872A 0081000

Active

Belden Inc.

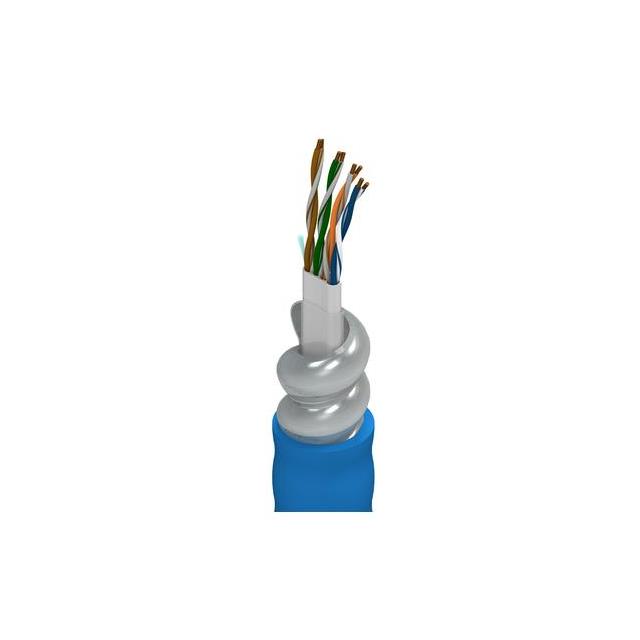

CABLE CAT6 8CON 23AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT6 8CON 23AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	121872A 0081000

Cable Type	Multi-Pair, Cat6
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	18.42 mm
Jacket (Insulation) Diameter [diameter]	0.725 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	23 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Insulation	Wire Gauge	Conductor Strand	Length [x]	Length [x]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Usage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Material	Length	Length
Belden Inc. 121872A 0102000	-40 °C	75 ░C	Black	Polyolefin (PO)	23 AWG	Solid	609.6 m	2000 ft	300 V	18.42 mm	0.725 in	Multi-Pair Cat6	Industrial Network	Poly-Vinyl Chloride (PVC)	1.27 mm	0.05 in	8	Copper Bare
Belden Inc. 121872A 0081000	-40 °C	75 ░C	Gray	Polyolefin (PO)	23 AWG	Solid			300 V	18.42 mm	0.725 in	Multi-Pair Cat6	Industrial Network	Poly-Vinyl Chloride (PVC)	1.27 mm	0.05 in	8	Copper Bare	1000 ft	304.8 m
Belden Inc. 121872A 0101000	-40 °C	75 ░C	Black	Polyolefin (PO)	23 AWG	Solid			300 V	18.42 mm	0.725 in	Multi-Pair Cat6	Industrial Network	Poly-Vinyl Chloride (PVC)	1.27 mm	0.05 in	8	Copper Bare	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.36

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Gray 23 AWG 1000.0' (304.8m)
