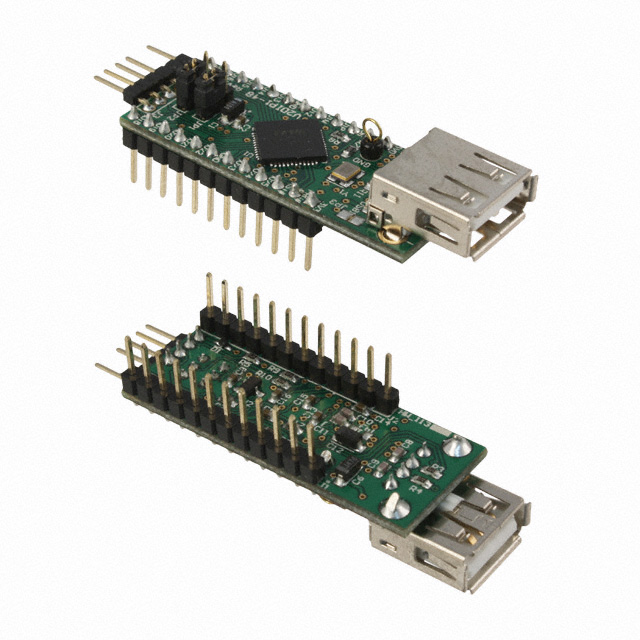

V2DIP1-48

Active

FTDI, Future Technology Devices International Ltd

MOD VINCULUM-II DEV 1 PORT 48DIP

Search across all available documentation for this part.

Active

FTDI, Future Technology Devices International Ltd

MOD VINCULUM-II DEV 1 PORT 48DIP

Technical Specifications

Parameters and characteristics for this part

Specification	V2DIP1-48

Contents	Board(s)
Embedded	Yes, ASIC
Function	USB 2.0 Host/Controller
Primary Attributes	UART, Single A-Type Connector, Parallel FIFO, SPI Interfaces
Secondary Attributes	Second USB Port is Available via Pins, Traffic LEDs
Supplied Contents	Board(s)
Type	Interface

Part	Secondary Attributes	Embedded	Supplied Contents	Function	Type	Primary Attributes	Contents	Utilized IC / Part
FTDI, Future Technology Devices International Ltd V2DIP1-32	Second USB Port is Available via Pins Traffic LEDs	Yes ASIC	Board(s)	USB 2.0 Host/Controller	Interface	Parallel FIFO Single A-Type Connector SPI Interfaces UART	Board(s)	VNC2-32Q
FTDI, Future Technology Devices International Ltd V2DIP1-48	Second USB Port is Available via Pins Traffic LEDs	Yes ASIC	Board(s)	USB 2.0 Host/Controller	Interface	Parallel FIFO Single A-Type Connector SPI Interfaces UART	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

VNC2-48Q Vinculum-II USB 2.0 Host/Controller Interface Evaluation Board
