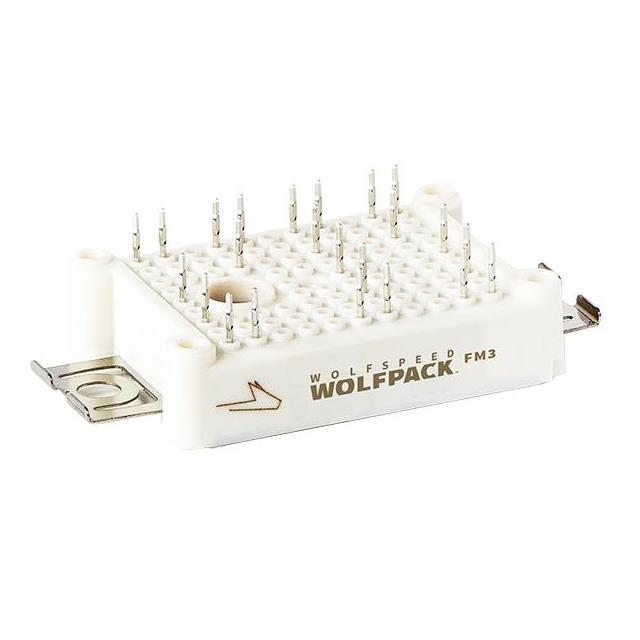

CAB011M12FM3

Active

Wolfspeed

SIC 2N-CH 1200V 105A MODULE

Search across all available documentation for this part.

Active

Wolfspeed

SIC 2N-CH 1200V 105A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	CAB011M12FM3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	105 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	324 nC
Input Capacitance (Ciss) (Max) @ Vds	10300 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rds On (Max) @ Id, Vgs	14 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

Part	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Configuration	Package / Case	Technology	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Rds On (Max) @ Id, Vgs
Wolfspeed CAB011M12FM3	3.6 V	150 °C	-40 °C	105 A	10300 pF	2 N-Channel (Half Bridge)	Module	Silicon Carbide (SiC)	1200 V	1.2 kV	324 nC	Chassis Mount	14 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 1200V (1.2kV) 105A Chassis Mount
