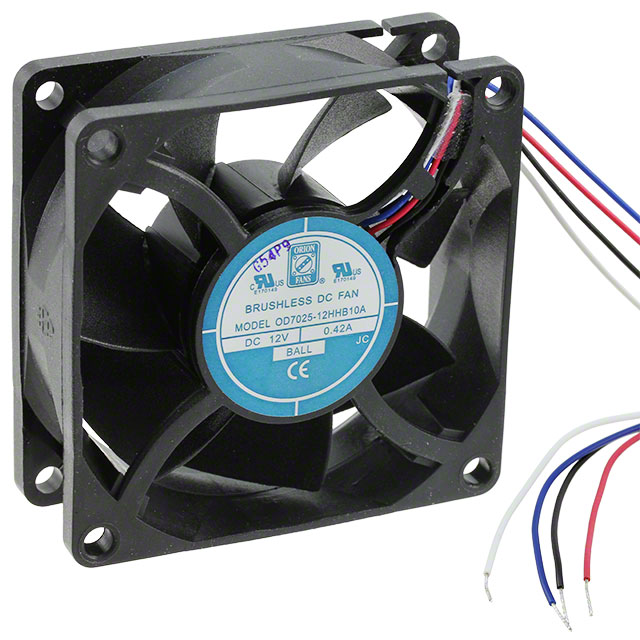

OD7025-12HHB10A

Active

Orion Fans

FAN AXIAL 70X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD7025-12HHB10A

Active

Orion Fans

FAN AXIAL 70X25MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD7025-12HHB10A

Air Flow	1.43 mł/min
Air Flow	51 CFM
Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	0.42 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5.04 W
RPM	5000 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.198 lb
Weight	89.81 g
Width [y]	25 mm

OD7025 Series

Part	Material - Blade	Material - Frame	Features	Voltage - Rated	Approval Agency	Termination	Fan Type	Width [y]	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Current Rating (Amps)	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Noise	RPM
Orion Fans OD7025-12HHSS02A	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Locked Rotor Sensor	12 VDC	CE	3 Wire Leads	Tubeaxial	25 mm	Sealed Sleeve	70 mm	70 mm
Orion Fans OD7025-12LB02A	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Locked Rotor Sensor	12 VDC	CE	3 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm
Orion Fans OD7025-12HHB10A	Polybutylene Terephthalate (PBT)		PWM Control Speed Sensor (Tach)	12 VDC	CE	4 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm	5.04 W	0.42 A	0.198 lb	89.81 g	13.2 VDC	10.8 VDC	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	1.43 mł/min	51 CFM	46 dB(A)	5000 RPM
Orion Fans OD7025-12LB01A	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Speed Sensor (Tach)	12 VDC	CE	3 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm
Orion Fans OD7025-24MB	Polybutylene Terephthalate (PBT)			24 VDC	CE	2 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm	2.64 W	0.09 A	0.198 lb	89.81 g	26.4 VDC	21.6 VDC	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	0.924 mł/min	33 CFM	36 dB	3800 RPM
Orion Fans OD7025-12LSS	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		12 VDC	CE	2 Wire Leads	Tubeaxial	25 mm	Sealed Sleeve	70 mm	70 mm
Orion Fans OD7025-12MB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		12 VDC	CE	2 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm
Orion Fans OD7025-12HHB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		12 VDC	CE	2 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm
Orion Fans OD7025-12HHB02A	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Locked Rotor Sensor	12 VDC	CE	3 Wire Leads	Tubeaxial	25 mm	Ball	70 mm	70 mm
Orion Fans OD7025-12HHSS	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		12 VDC	CE	2 Wire Leads	Tubeaxial	25 mm	Sealed Sleeve	70 mm	70 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.65

Description

General part information

OD7025 Series

Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Ball 51.0 CFM (1.43m³/min) 4 Wire Leads
