D10BFPQ

Active

BANNER ENGINEERING

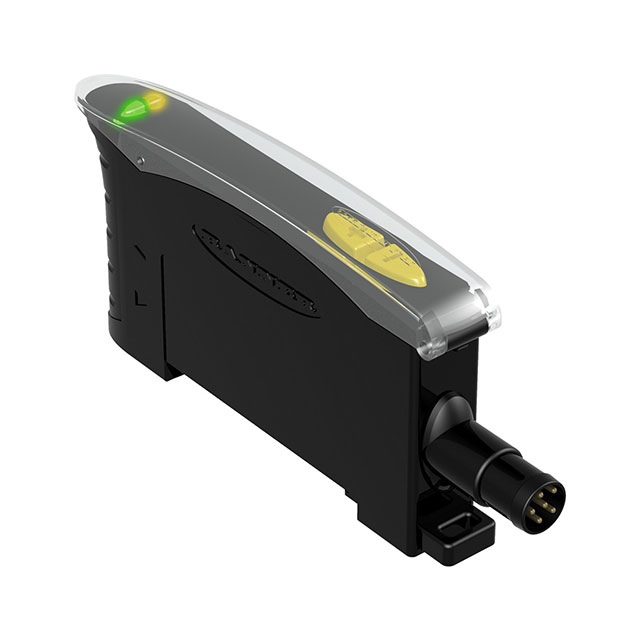

D10BFPQ SENSOR FOR USE WITH PLASTIC FIBER OPTICS

Search across all available documentation for this part.

Active

BANNER ENGINEERING

D10BFPQ SENSOR FOR USE WITH PLASTIC FIBER OPTICS

Technical Specifications

Parameters and characteristics for this part

Specification	D10BFPQ

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Connector
Ingress Protection	NEMA 1 IEC IP50
Light Source	Red LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Response Time	500 µs
Sensing Method	Fiber Optic
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Connection Method	Response Time	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Light Source	Output Configuration	Sensing Method	Cable Length	Cable Length
BANNER ENGINEERING D10BFPQ	30 VDC	10 VDC	NEMA 1 IEC IP50	Connector	500 µs	55 °C	-10 °C	Red LED	NPN/PNP	Fiber Optic	78.74 in	2 m
BANNER ENGINEERING D10BFP	30 VDC	10 VDC	NEMA 1 IEC IP50	Cable	500 µs	55 °C	-10 °C	Red LED	NPN/PNP	Fiber Optic	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 171.00
Newark	Each	1	$ 180.00

General part information

Fiber Optic Optical Sensor NPN/PNP
