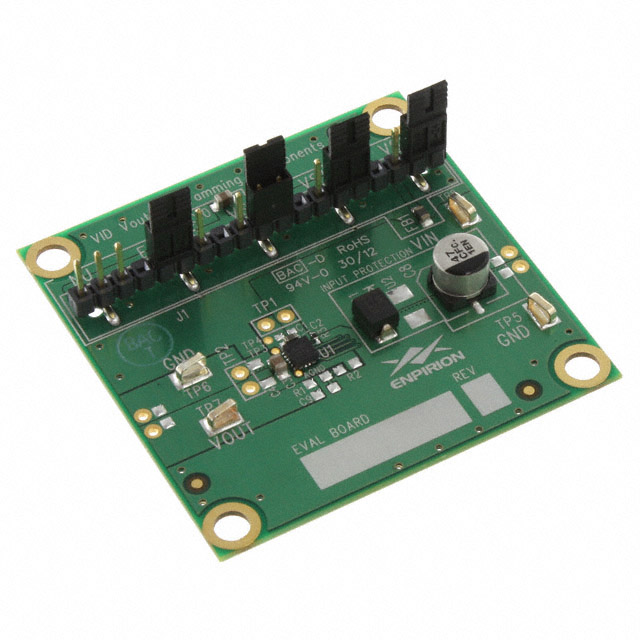

EVB-EP53A8LQI

Obsolete

Altera

EVAL BOARD FOR EP53A8LQI

Search across all available documentation for this part.

Obsolete

Altera

EVAL BOARD FOR EP53A8LQI

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Current - Output	Regulator Topology	Outputs and Type	Outputs and Type	Main Purpose	Utilized IC / Part	Board Type	Voltage - Output
Altera EVB-EP53A8LQA	5 MHz	2.4 V	5.5 V	Board(s)	1 A	Buck	Non-Isolated	1	DC/DC Step Down	EP53A8LQA	Fully Populated
Altera EVB-EP53A8LQI	5 MHz	2.4 V	5.5 V	Board(s)	1 A	Buck	Non-Isolated	1	DC/DC Step Down	EP53A8LQI	Fully Populated	0.8 V 1.05 V 1.1 V 1.15 V 1.2 V 1.45 V 1.5 V
Altera EVB-EP53A8HQI	5 MHz	2.4 V	5.5 V	Board(s)	1 A	Buck	Non-Isolated	1	DC/DC Step Down	EP53A8HQI	Fully Populated	1.8 V 2.1 V 2.2 V 2.5 V 2.6 V 2.9 V 3 V 3.3 V
Altera EVB-EP53A7LQI	5 MHz	2.4 V	5.5 V	Board(s)	1 A	Buck	Non-Isolated	1	DC/DC Step Down	EP53A7LQI	Fully Populated	0.8 V 1.05 V 1.1 V 1.15 V 1.2 V 1.45 V 1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

EP53A8LQI Enpirion® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
