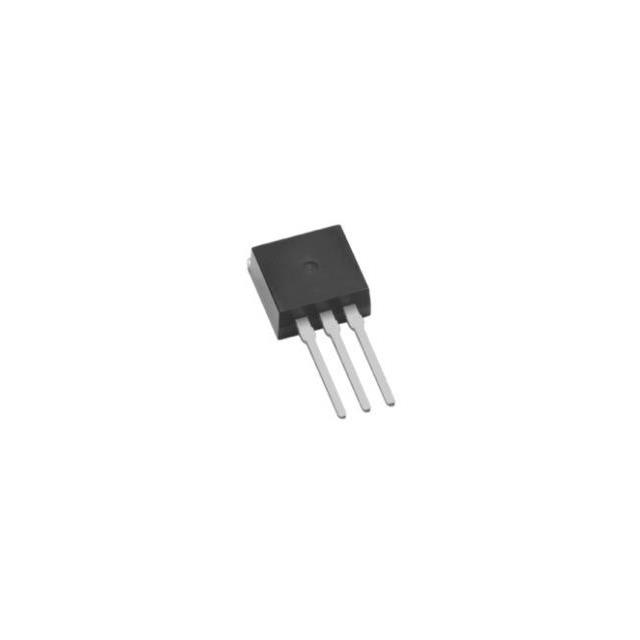

32CTQ030-1

Active

SMC Diode Solutions

DIODE ARR SCHOTT 30V 15A TO262

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE ARR SCHOTT 30V 15A TO262

Technical Specifications

Parameters and characteristics for this part

Specification	32CTQ030-1

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	1.75 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-262-3 Full Pack, I2PAK
Speed	200 mA, 500 ns
Supplier Device Package	TO-262
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	580 mV

Part	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Reverse Leakage @ Vr	Speed	Supplier Device Package
SMC Diode Solutions 32CTQ030-1	580 mV	1 Pair Common Cathode	Schottky	30 V	15 A	Through Hole	150 °C	-55 °C	TO-262-3 Full Pack I2PAK	1.75 mA	200 mA 500 ns	TO-262
SMC Diode Solutions 32CTQ030S	490 mV	1 Pair Common Cathode	Schottky	30 V	15 A	Surface Mount	150 °C	-55 °C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.75 mA	200 mA 500 ns	D2PAK
SMC Diode Solutions 32CTQ030	580 mV	1 Pair Common Cathode	Schottky	30 V	30 A	Through Hole	150 °C	-55 °C	TO-220-3	1.75 mA	200 mA 500 ns	TO-220AB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	8000	$ 0.51

General part information

Diode Array 1 Pair Common Cathode 30 V 15A Through Hole TO-262-3 Full Pack, I2PAK
