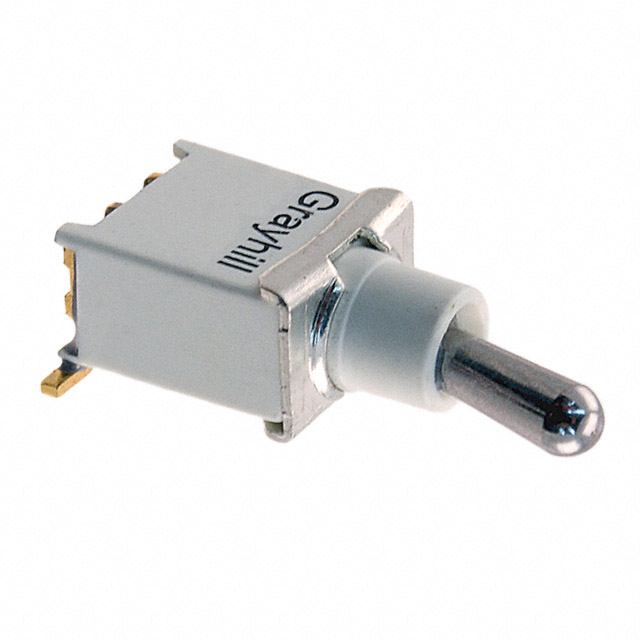

34EWMSP12M6RT

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Ingress Protection	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Length [x]	Illumination	Bushing Thread	Circuit	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Features	Switch Function	Voltage Rating - AC	Actuator Material	Actuator Length [z]
Grayhill Inc. 34EWMSP12M6RT	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	-30 ░C	85 °C	Surface Mount Right Angle	6.1 mm	Non-Illuminated	Unthreaded	SPDT	20 V	0.4 VA	30000 Cycles	Epoxy Sealed Terminals	On-On	20 V	Brass Chrome Plated
Grayhill Inc. 34EWMSP31M6RT	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	-30 ░C	85 °C	Surface Mount Right Angle	10.8 mm	Non-Illuminated	Unthreaded	SPDT	20 V	0.4 VA	30000 Cycles	Epoxy Sealed Terminals	On-Off-On	20 V	Brass Chrome Plated
Grayhill Inc. 34EWMSP34M7RT	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	-30 ░C	85 °C	Right Angle Surface Mount Vertical		Non-Illuminated	Unthreaded	SPDT	20 V	0.4 VA	30000 Cycles	Epoxy Sealed Terminals	On-Off-On	20 V	Brass Chrome Plated	6.7 mm
Grayhill Inc. 34EWMSP33M6RT	Gull Wing	IP67 - Dust Tight Waterproof	Standard Round	-30 ░C	85 °C	Surface Mount Right Angle	10.8 mm	Non-Illuminated	Unthreaded	SPDT	20 V	0.4 VA	30000 Cycles	Epoxy Sealed Terminals	On-Off-On	20 V	Brass Chrome Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Surface Mount, Right Angle
