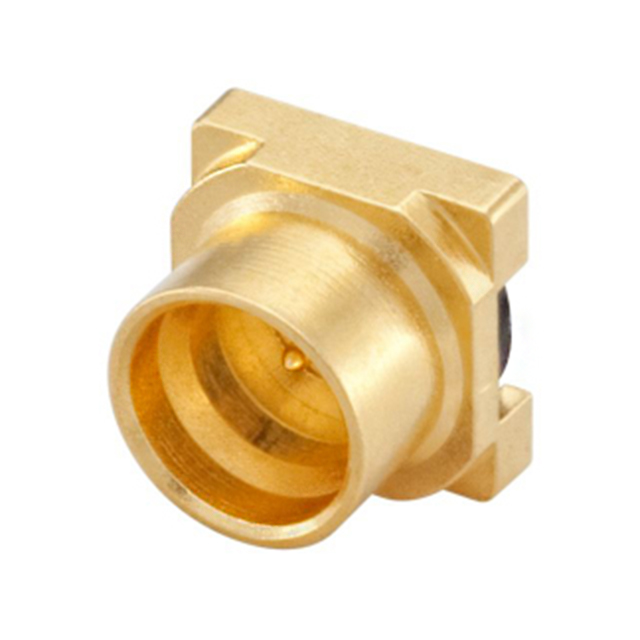

19S106-500L5
ActiveRosenberger
SMP STRAIGHT PLUG PCB
Deep-Dive with AI
Search across all available documentation for this part.
19S106-500L5
ActiveRosenberger
SMP STRAIGHT PLUG PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19S106-500L5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.67 | |
Description
General part information
19S106 Series
SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
