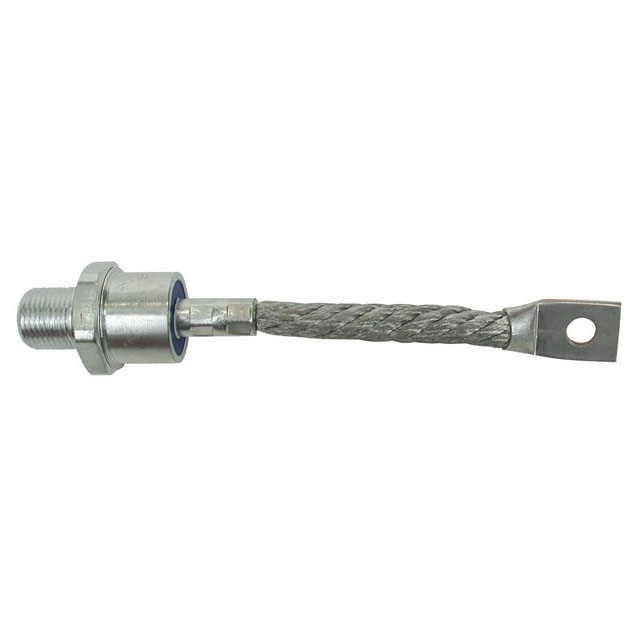

1N4045

Unknown

Powerex Inc.

RECTIFIER DIODE,100V V(RRM),DO-9 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Unknown

Powerex Inc.

RECTIFIER DIODE,100V V(RRM),DO-9 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	1N4045

Current - Average Rectified (Io)	275 A
Current - Reverse Leakage @ Vr	15 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	190 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-205AB, DO-9, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Average Rectified (Io)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Mounting Type	Speed	Speed
Powerex Inc. 1N4045	190 °C	-65 C	DO-205AB DO-9 Stud	275 A	Standard	100 V	15 mA	Chassis Stud Mount	Standard Recovery >500ns	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 275A Chassis, Stud Mount DO-205AB (DO-9)
