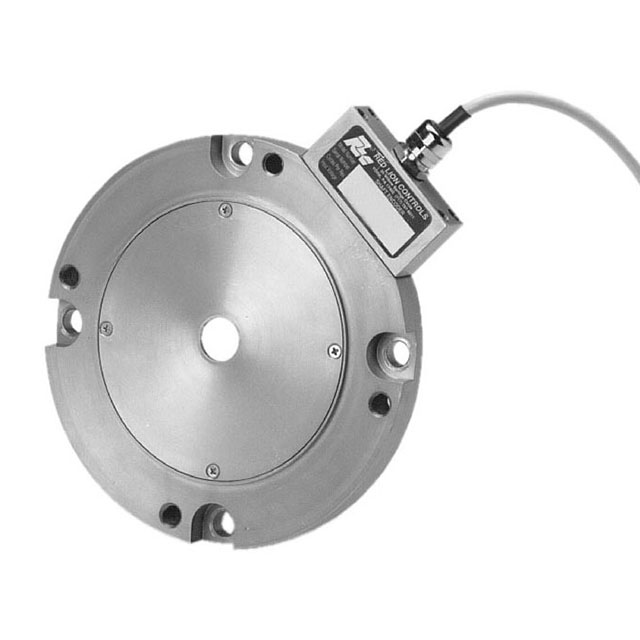

ZRJ0256A

Active

RED LION CONTROLS

ROTARY ENCODER MECHANICAL 256PPR

Search across all available documentation for this part.

Active

RED LION CONTROLS

ROTARY ENCODER MECHANICAL 256PPR

Technical Specifications

Parameters and characteristics for this part

Specification	ZRJ0256A

Detent	False
Encoder Type	Mechanical
Mounting Type	Chassis Mount, Motors
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	256 pulses per revolution
Termination Style	Cable
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	4.75 V

Part	Termination Style	Encoder Type	Pulses per Revolution	Detent	Output Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
RED LION CONTROLS ZRJ0256A	Cable	Mechanical	256 pulses per revolution		Quadrature with Index (Incremental)	Chassis Mount Motors	4.75 V	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1135.06

General part information

ROTARY ENCODER MECHANICAL 256PPR

Technical documentation and resources

No documents available
