B13B-ZESK-1D

Active

JST Sales America Inc.

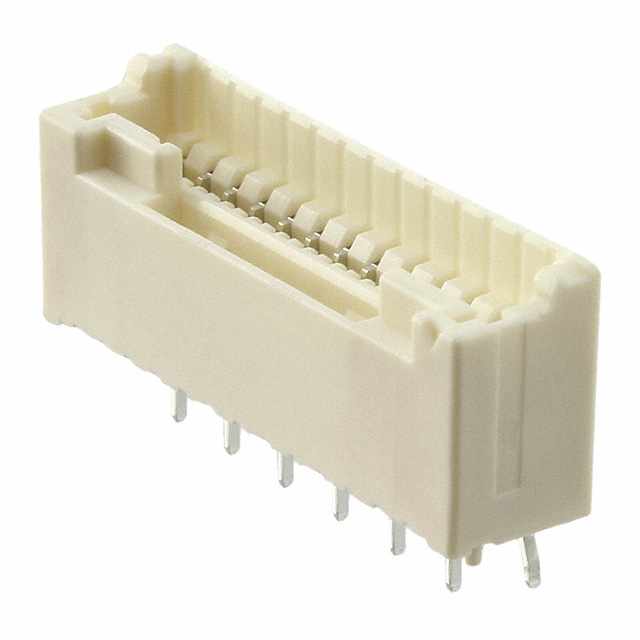

CONN HEADER VERT 13POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 13POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B13B-ZESK-1D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Termination	Shrouding	Contact Finish - Post	Insulation Height	Insulation Height	Number of Rows	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Current Rating (Amps)	Contact Material	Number of Positions	Fastening Type	Style	Insulation Material	Material Flammability Rating	Insulation Color	Connector Type	Contact Shape	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Features
JST Sales America Inc. B13B-ZESK-1D	Kinked Pin Solder	Shrouded - 4 Wall	Tin	0.335 "	8.51 mm	1	All	0.134 in	3.4 mm	Through Hole	2 A	Copper Alloy	13	Locking Ramp	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	Natural	Header	Rectangular	Outer Shroud Contact	-25 °C	85 °C	100 V	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	640	$ 0.64

General part information

Connector Header Through Hole 13 position 0.059" (1.50mm)
