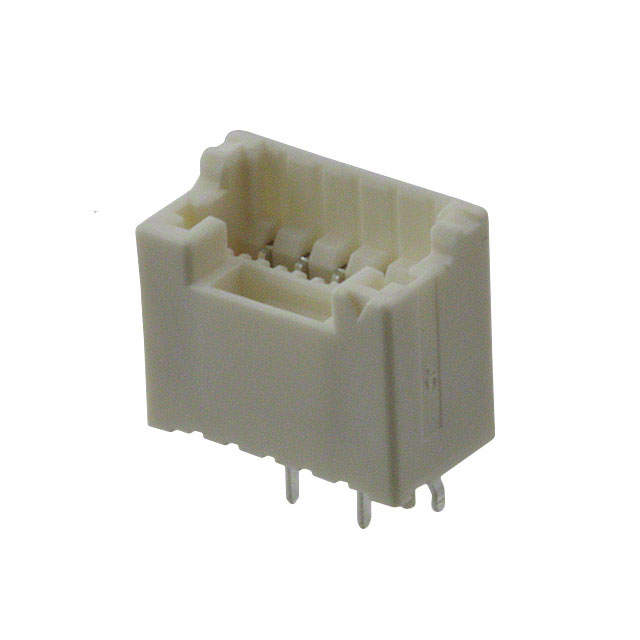

B05B-ZESK-1D

Active

JST Sales America Inc.

CONN HEADER VERT 5POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 5POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B05B-ZESK-1D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 V

Part	Features	Voltage Rating	Termination	Number of Positions Loaded	Material Flammability Rating	Mounting Type	Insulation Color	Fastening Type	Connector Type	Contact Type	Insulation Material	Current Rating (Amps)	Shrouding	Contact Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Post	Insulation Height	Insulation Height	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]
JST Sales America Inc. B05B-ZESK-1D	Board Guide	100 V	Kinked Pin Solder	All	UL94 V-0	Through Hole	Natural	Locking Ramp	Header	Outer Shroud Contact	Polyamide (PA66) Nylon 6/6 Glass Filled	2 A	Shrouded - 4 Wall	Copper Alloy	Board to Cable/Wire	-25 °C	85 °C	1	Tin	0.335 "	8.51 mm	Rectangular	0.134 in	3.4 mm
