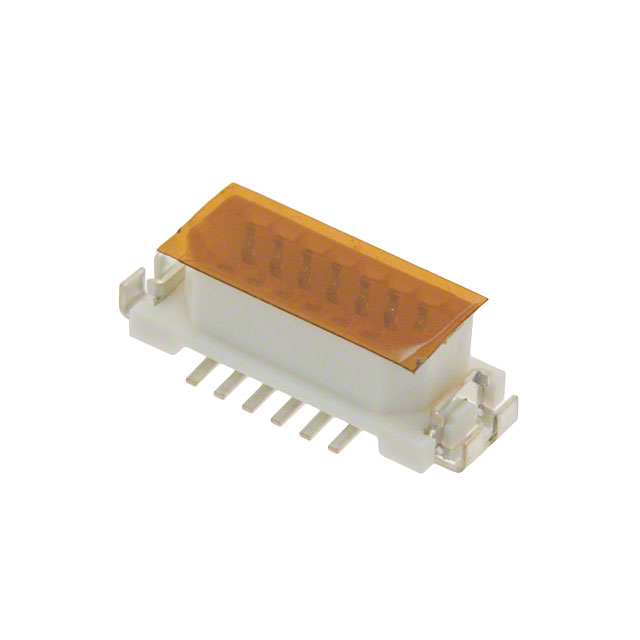

DF9-13P-1V(32)
ActiveHirose Electric USA, Inc.
CONN HDR 13POS SMD TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDF9-xP-1V(32) Spec
DF9-13P-1V(32)
ActiveHirose Electric USA, Inc.
CONN HDR 13POS SMD TIN
Deep-Dive with AI
DocumentsDF9-xP-1V(32) Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | DF9-13P-1V(32) |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights [z] | 4.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 13 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 0.96 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 0.96 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.71 | |||
| Tape & Reel (TR) | 1000 | $ 0.63 | ||
| 2000 | $ 0.59 | |||
| 3000 | $ 0.57 | |||
| 5000 | $ 0.55 | |||
| 10000 | $ 0.52 | |||
Description
General part information
DF9-13P Series
13 Position Connector Header, Center Strip Contacts Surface Mount Tin
