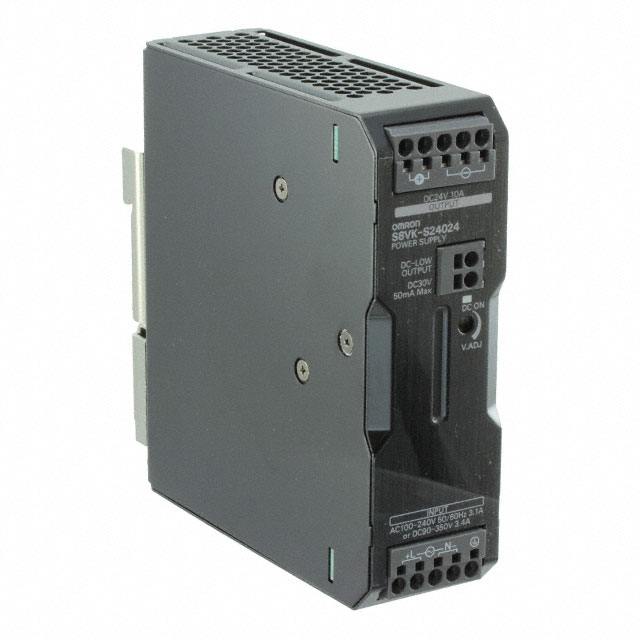

S8VK-S24024

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-S24024

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	350 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	93 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	1
Power (Watts)	240 W
Size / Dimension [x]	4.81 "
Size / Dimension [x]	122.2 mm
Size / Dimension [y]	1.5 in
Size / Dimension [y]	38 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Power (Watts)	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Input Type	DC Voltage - Input (Max) [Max]	Applications	Features	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]
Omron Electronics Inc-EMC Div S8VK-S24024	CE cURus TUV	4.81 "	4.88 "	1.5 in	122.2 mm	38 mm	124 mm	93 %	240 W	3000 V	10 A	1	24 V	AC or DC	350 V	ITE (Commercial)	Adjustable Output PFC Universal Input	90 V	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
