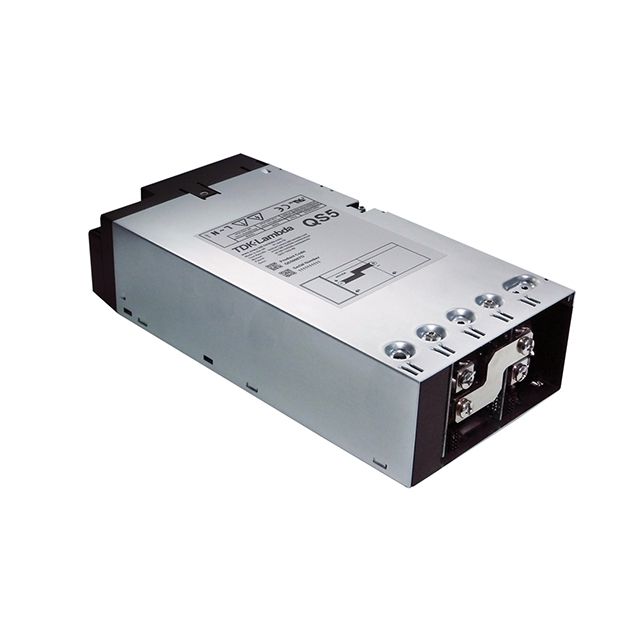

QS5000L6
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 1.2 KW, 24 V, 50 A
Deep-Dive with AI
Search across all available documentation for this part.
QS5000L6
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUTS, 1.2 KW, 24 V, 50 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QS5000L6 |
|---|---|
| Applications | Laboratory, ITE (Commercial), Medical |
| Approval Agency | CE, CB |
| Current - Output 1 | 50 A |
| Efficiency | 91 % |
| Features | PFC, Adjustable Output, Standby Output, Universal Input, Remote Sense, PMBus™ |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 1200 W |
| Size / Dimension [x] | 10.63 in |
| Size / Dimension [x] | 270 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 2.49 in |
| Size / Dimension [z] | 63.3 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QS5000 Series
QS5000L6 is a QS series single output, medical and industrial power supply. It includes overvoltage, overcurrent and short circuit protection. Application includes medical, industrial, test, broadcast, communication and renewable. Certified by IEC60601-1, CSA60601-1, EN60601-1, ES60601-1, UL60601-1, IEC60950-1, CSA60950-1, EN60950-1, UL60950-1, IEC61010-1, EN61010-1, IEC62368-1, CSA62368-1, EN62368-1, UL62368-1.
