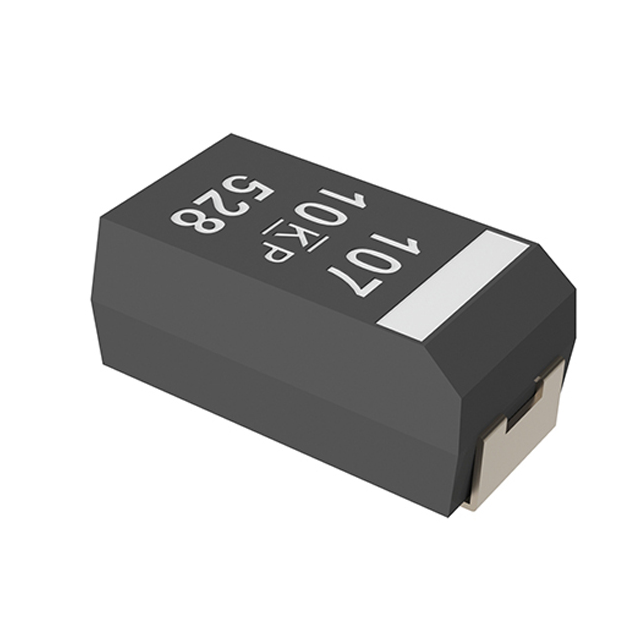

T598B107M004ATE045

Active

KEMET

TANTALUM POLYMER CAPACITOR, 100 ΜF, ± 20%, 4 V, B, 0.045 OHM, 1411 [3528 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T598B107M004ATE045 Spec +2

T598B107M004ATE045

Active

KEMET

TANTALUM POLYMER CAPACITOR, 100 ΜF, ± 20%, 4 V, B, 0.045 OHM, 1411 [3528 METRIC]

Deep-Dive with AI

DocumentsDatasheet T598B107M004ATE045 Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T598B107M004ATE045

Capacitance	100 µF
ESR (Equivalent Series Resistance)	45 mOhm
Features	Automotive
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Ratings	AEC-Q200
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	4 V

T598B Series

Part	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Lifetime @ Temp.	Type	Tolerance	Features	Voltage - Rated	ESR (Equivalent Series Resistance)	Ratings	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T598B107M2R5ATE055	100 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	2.5 V	55 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B336M010AHS080	33 ÁF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	10 V	80 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B225M050AHS150	2.2 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	50 VDC	150 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B336M006ATE080	33 ÁF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	6.3 V	80 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B107M004ATE045	100 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	4 V	45 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B476M010ATE070	47 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	10 V	70 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B107M006ATE055	100 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1210 1411 (3528 Metric)		2000 Hrs	Molded	20 %	Automotive	6.3 V	55 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B336M010AHE070	33 ÁF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	10 V	70 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B476M006AHE070	47 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	6.3 V	70 mOhm	AEC-Q200	B	-55 °C	125 °C
KEMET T598B157M006AHS055	150 µF	0.11 in	2.8 mm	0.138 "	3.5 mm	Surface Mount	2.1 mm	0.083 "	1411	3528 Metric	2000 Hrs	Molded	20 %	Automotive	6.3 V	55 mOhm	AEC-Q200	B	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.39
	Digi-Reel®	1	$ 1.39
	Tape & Reel (TR)	2000	$ 0.43
Newark	Each (Supplied on Full Reel)	2000	$ 0.44
		4000	$ 0.40
		6000	$ 0.38
		10000	$ 0.37

Description

General part information

T598B Series

100 µF Molded Tantalum Polymer Capacitor 4 V 1411 (3528 Metric) 45mOhm @ 100kHz
