AHDP06-24-07SN-WTACL22

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 7POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDura|Mate™ Family Brochure A Series Family +1

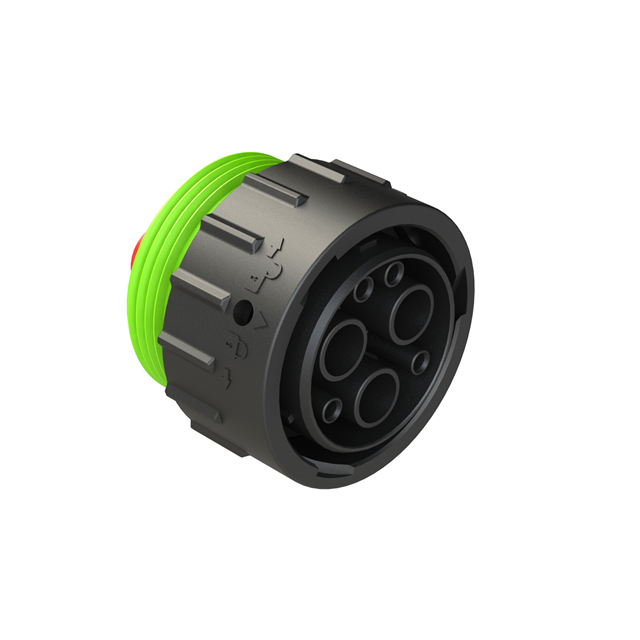

AHDP06-24-07SN-WTACL22

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 7POS INLINE

Deep-Dive with AI

DocumentsDura|Mate™ Family Brochure A Series Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP06-24-07SN-WTACL22

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16, 4
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	24-7
Shielding	Unshielded
Type	For Female Sockets

AHDP06 Series

...

Part	Number of Positions	Contact Shape	Shielding	Insert Material	Fastening Type	Mounting Type	Type	Housing Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Orientation	Shell Size - Insert	Note	Connector Type	Contact Size	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Primary Material	Features	Contact Size
Amphenol Sine Systems Corp AHDP06-24-07SN-WTACL22	7	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-7	Contacts Not Included	Plug Housing	4 16
Amphenol Sine Systems Corp AHDP06-24-31SR-STA	31	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP68 IP69K	Keyed		Contacts Not Included	Plug Housing	16	31	24	Plastic	Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-19PN-SRA	19	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Male Pins	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-19	Contacts Not Included	Plug Housing	12 16				Coupling Nut	6 13
Amphenol Sine Systems Corp AHDP06-18-21SN-WTA	21	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed		Contacts Not Included	Plug Housing	20	21	18		Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-31PR-SRA	31	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Male Pins	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed		Contacts Not Included	Plug Housing	16	31	24		Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-21SN-SRA	21	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-21	Contacts Not Included	Plug Housing	12 16				Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-21SN-WTA	21	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	24-21	Contacts Not Included	Plug Housing	12 16				Coupling Nut
Amphenol Sine Systems Corp AHDP06-18-14PN-WTA	14	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Male Pins	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	18-14	Contacts Not Included	Plug Housing	16				Coupling Nut
Amphenol Sine Systems Corp AHDP06-18-06SN-SRAC030	2	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP67 IP69K	Keyed	18-6	Contacts Not Included	Plug Housing	4 4				Coupling Nut
Amphenol Sine Systems Corp AHDP06-24-07SN-STA	7	Circular	Unshielded	Thermoplastic	Bayonet Lock	Free Hanging (In-Line)	For Female Sockets	Black	Crimp	-55 °C	125 °C	IP68 IP69K	Keyed	24-7	Contacts Not Included	Plug Housing	8 12			Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.60
		10	$ 14.96
		25	$ 14.02
		50	$ 13.35
		100	$ 12.72
		250	$ 11.92
		500	$ 11.35

Description

General part information

AHDP06 Series

7 (Radsok) Position Circular Connector Plug Housing Free Hanging (In-Line)
