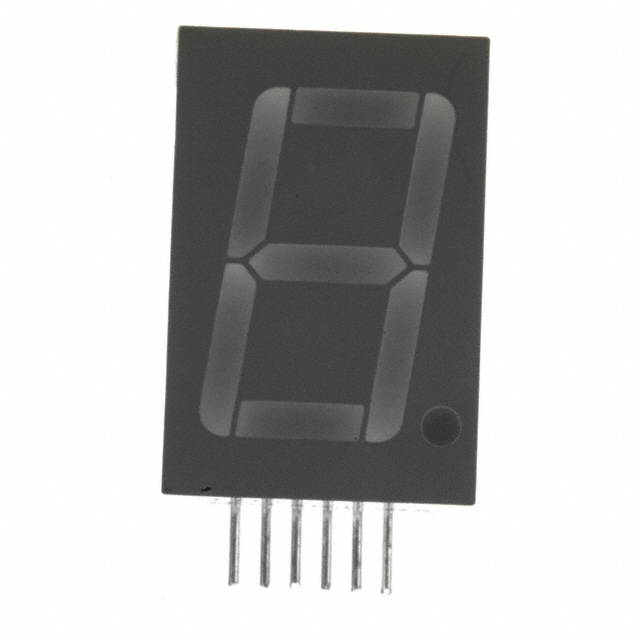

LDS-N514RI-RA
ActiveLumex Opto/Components Inc.
DISP 7SEG 0.56" SGL RED 6SIP RA
Deep-Dive with AI
Search across all available documentation for this part.
LDS-N514RI-RA
ActiveLumex Opto/Components Inc.
DISP 7SEG 0.56" SGL RED 6SIP RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-N514RI-RA |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 3.4 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 6-SIP Right Angle |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.748 " |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.98 | |
Description
General part information
LDS-N514 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 10mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 6-SIP Right Angle
Documents
Technical documentation and resources
No documents available
