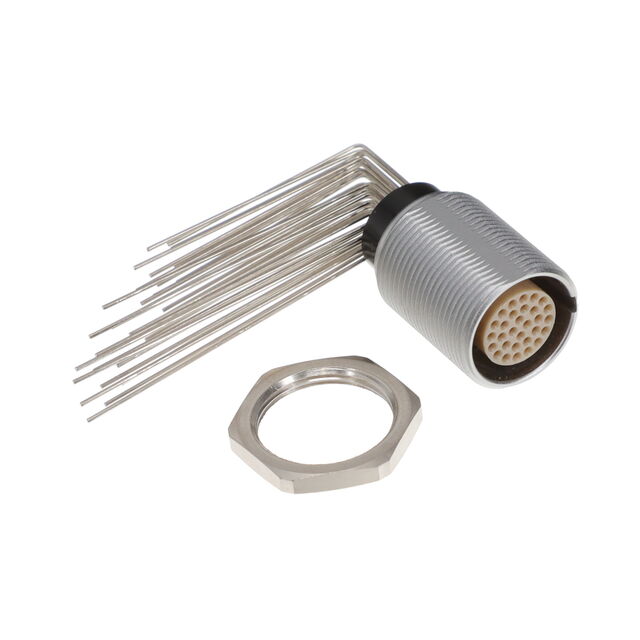

G53L0C-P30QF00-A000

Active

ODU

ODU MINI-SNAP RECEPT, STY 5, SZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G53L0C-P30QF00-A000

Active

ODU

ODU MINI-SNAP RECEPT, STY 5, SZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G53L0C-P30QF00-A000

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	30
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VDC

G53L0C-P Series

Part	Features	Contact Finish - Mating	Shell Size - Insert	Primary Material	Connector Type	Color	Insert Material	Number of Positions	Voltage Rating	Shielding	Current Rating (Amps)	Shell Material	Fastening Type	Ingress Protection	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Material	Applications	Termination	Mounting Type
ODU G53L0C-P22LFG0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	22 positions	333 V	Unshielded	7.5 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU G53L0C-P03MTS0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)		600 V	Unshielded	24 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU G53L0C-P08QP00-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	8	550 VDC	Unshielded	12 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder	Panel Mount Through Hole
ODU G53L0C-P14LJG0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	14	450 V	Unshielded	7.5 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU G53L0C-P07PSN0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	7	450 V	Unshielded	21 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement	Crimp
ODU G53L0C-P30QF00-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	30	300 VDC	Unshielded	6 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder	Panel Mount Through Hole
ODU G53L0C-P10LPH0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	10	450 V	Unshielded	12 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU G53L0C-P07LSN0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	7	600 V	Unshielded	16 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU G53L0C-P30QF00-A000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	30	300 VDC	Unshielded	6 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder	Panel Mount Through Hole
ODU G53L0C-P04LTQ0-0000	Ground	Gold	3	Metal	Receptacle Female Sockets	Silver	Polyetheretherketone (PEEK)	4	550 VDC	Unshielded	18 A	Brass	Push-Pull	IP50	Bulkhead - Front or Rear Side Nut	-40 °C	120 °C	Chrome over Nickel	Brass	Industrial Medical Military Testing Equipment & Measurement

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 240.19
		10	$ 222.57
		25	$ 214.57

Description

General part information

G53L0C-P Series

30 Position Circular Connector Receptacle, Female Sockets Solder
