LCW MVSG.EC-BXCX-4O9Q-1-20-R18-Z

Obsolete

ams-OSRAM USA INC.

LED MINITOPLED

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MINITOPLED

Technical Specifications

Parameters and characteristics for this part

Specification	LCW MVSG.EC-BXCX-4O9Q-1-20-R18-Z

Color	White
CRI (Color Rendering Index)	82
Current - Max [Max]	30 mA
Current - Test	20 mA
Height - Seated (Max) [Max]	1.4 mm
Height - Seated (Max) [Max]	0.055 in
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	1.8 mm
Size / Dimension [y]	0.071 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	130 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.05 V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Viewing Angle	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Thermal Resistance of Package [custom]	Current - Test	Package / Case	CCT (K)	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Lumens/Watt @ Current - Test
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4O9Q-1-20-R18-Z	1.8 mm	0.071 in	2 mm	0.079 in	White	120 °	SMD	1.4 mm	0.055 in	82	Surface Mount	3.05 V	30 mA	130 °C/W	20 mA	2-SMD J-Lead
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4L8N-1-20-R18	1.8 mm	0.071 in	2 mm	0.079 in	Neutral White	120 °	SMD	1.4 mm	0.055 in	82	Surface Mount	3.05 V	30 mA	130 °C/W	20 mA	2-SMD J-Lead	4000 K	8 lm	9 lm	6 lm	131 lm/W
ams-OSRAM USA INC. LCW MVSG.EC-AZBZ-4U9X-1-20-R18	1.8 mm	0.071 in	2 mm	0.079 in	Warm White	120 °	SMD	1.4 mm	0.055 in	82	Surface Mount	3.05 V	30 mA	130 °C/W	20 mA	2-SMD J-Lead	2700 K	6 lm	8 lm	5 lm	98 lm/W
ams-OSRAM USA INC. LCW MVSG.EC-AZBZ-4R9T-1-20-R18	1.8 mm	0.071 in	2 mm	0.079 in	Warm White	120 °	SMD	1.4 mm	0.055 in	82	Surface Mount	3.05 V	30 mA	130 °C/W	20 mA	2-SMD J-Lead		6 lm	8 lm	5 lm	98 lm/W
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4F8G-1-20-R18	1.8 mm	0.071 in	2 mm	0.079 in	Cool White	120 °	SMD	1.4 mm	0.055 in	82	Surface Mount	3.05 V	30 mA	130 °C/W	20 mA	2-SMD J-Lead	5700 K	8 lm	9 lm	6 lm	131 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

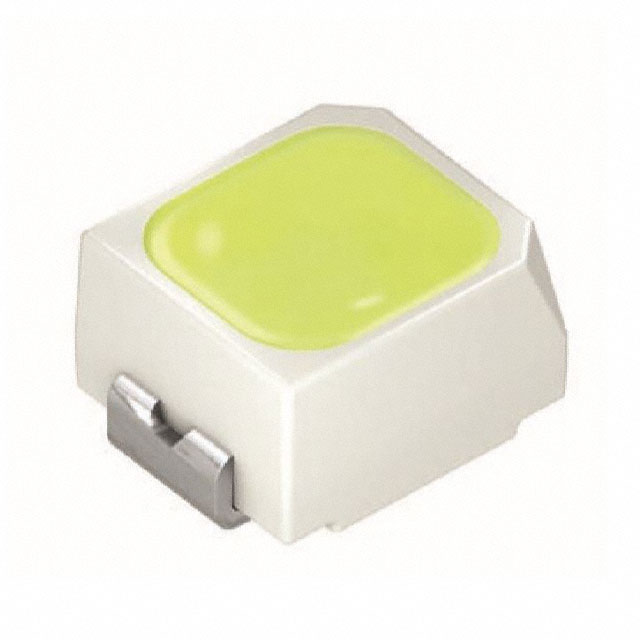

LED Lighting Mini TOPLED® White 3.05V 20mA 120° 2-SMD, J-Lead
