2852353
ActivePhoenix Contact

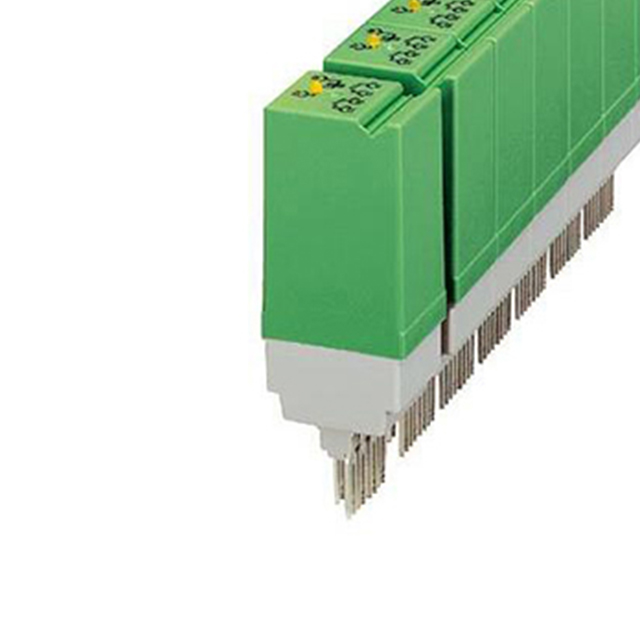

RELAY GEN PURPOSE DPST 5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2852353
ActivePhoenix Contact
RELAY GEN PURPOSE DPST 5A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2852353 |
|---|---|
| Approval Agency | GOST |
| Coil Current | 19 mA |
| Coil Resistance | 1.26 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Features | Lighted Indicator |
| Mounting Type | Socketable |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 185.44 | |
Description
General part information
28523 Series
General Purpose Relay DPST-NO (2 Form A) 24VAC/DC Coil Socketable
