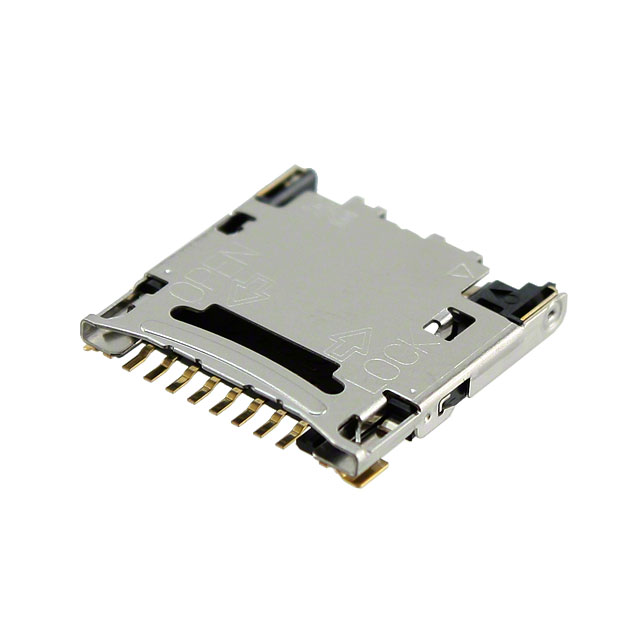

DM3CS-SF
ActiveHirose Electric USA, Inc.
CONN MICRO SD CARD HINGED TYPE
Deep-Dive with AI
Search across all available documentation for this part.
DM3CS-SF
ActiveHirose Electric USA, Inc.
CONN MICRO SD CARD HINGED TYPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DM3CS-SF |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Contact Finish | Gold |
| Features | Switch |
| Height Above Board | 0.072 in |
| Height Above Board | 1.83 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.55 | |
| 10 | $ 1.35 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.21 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.01 | |||
| Digi-Reel® | 1 | $ 1.55 | ||
| 10 | $ 1.35 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.21 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.01 | |||
| Tape & Reel (TR) | 1300 | $ 0.86 | ||
| 2600 | $ 0.80 | |||
| 3900 | $ 0.77 | |||
| 6500 | $ 0.73 | |||
| 9100 | $ 0.71 | |||
Description
General part information
DM3CS Series
10 (8 + 2) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
