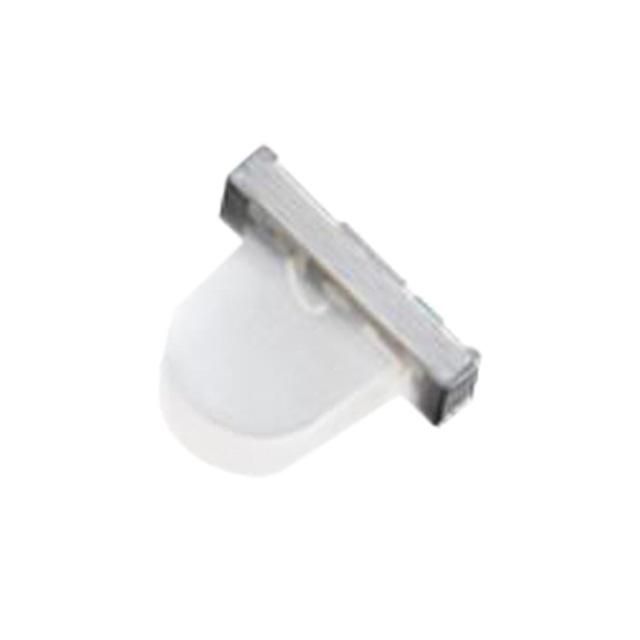

APPA3010SF4C-P22

Active

Kingbright

INFRARED EMITTERS RA INFARED 1MW

Search across all available documentation for this part.

Active

Kingbright

INFRARED EMITTERS RA INFARED 1MW

Technical Specifications

Parameters and characteristics for this part

Specification	APPA3010SF4C-P22

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	1 mW/sr
Type	Infrared (IR)
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	1.3 V
Wavelength	880 nm

Part	Current - Test	Wavelength - Dominant	Package / Case	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Lens Color	Supplier Device Package	Height (Max) [Max] [z]	Color	Configuration	Wavelength - Peak	Lens Transparency	Lens Size [diameter]	Viewing Angle	Mounting Type	Orientation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
Kingbright APPA3010ZGCK	20 mA	525 nm	2-SMD No Lead	3.3 V	700 mcd	3 mm	2.5 mm	Round with Domed Top	Colorless	SMD	1.1 mm	Green	Standard	515 nm	Clear	2.01 mm Dia	30 °	Surface Mount Right Angle
Kingbright APPA3010SURCK	20 mA	630 nm	2-SMD No Lead	1.95 V	300 mcd	3 mm	2.5 mm	Round with Domed Top	Colorless	SMD	1.1 mm	Red	Standard	645 nm	Clear	2.01 mm Dia	30 °	Surface Mount Right Angle
Kingbright APPA3010QBC/D	20 mA	465 nm	2-SMD No Lead	3.3 V	200 mcd	3 mm	2.5 mm	Round with Domed Top	Colorless	SMD	1.1 mm	Blue	Standard	460 nm	Clear	2.01 mm Dia	30 °	Surface Mount Right Angle
Kingbright APPA3010SF4C-P22			2-SMD No Lead	1.3 V													30 °	Surface Mount Right Angle	Side View	Infrared (IR)	85 °C	-40 °C	50 mA	880 nm	1 mW/sr
Kingbright APPA3010CGCK	20 mA	570 nm	2-SMD No Lead	2.1 V	150 mcd	3 mm	2.5 mm	Round with Domed Top	Colorless	SMD	1.1 mm	Green	Standard		Clear	2.01 mm Dia	30 °	Surface Mount Right Angle
Kingbright APPA3010SYCK	20 mA	590 nm	2-SMD No Lead	2 V	450 mcd	3 mm	2.5 mm	Round with Domed Top	Colorless	SMD	1.1 mm	Yellow	Standard	590 nm	Clear	2.01 mm Dia	30 °	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 880nm 1.3V 50mA 1mW/sr @ 20mA 30° 2-SMD, No Lead
