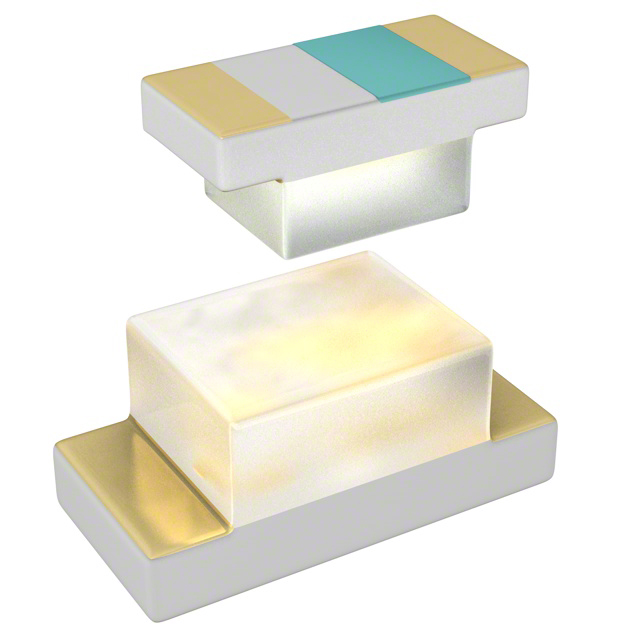

QTLP600CYTR

Active

Everlight Electronics Co Ltd

SINGLE COLOR LED, YELLOW, WATER CLEAR, 1.2MM, 1.60 X 0.80 MM, 0.80 MM HEIGHT, SMD, 2 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QTLP600CYTR

Active

Everlight Electronics Co Ltd

SINGLE COLOR LED, YELLOW, WATER CLEAR, 1.2MM, 1.60 X 0.80 MM, 0.80 MM HEIGHT, SMD, 2 PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTLP600CYTR

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	0.8 mm
Lens Color	Colorless
Lens Size [x]	1.2 mm
Lens Size [y]	0.8 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	40 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	590 nm

QTLP600 Series

Part	Wavelength - Dominant	Lens Style	Mounting Type	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Lens Size [x]	Lens Size [y]	Current - Test	Lens Color	Color	Lens Transparency	Configuration	Package / Case	Millicandela Rating	Wavelength - Peak	Package / Case
Everlight Electronics Co Ltd QTLP600CRYTR	589 nm 624 nm	Rectangle with Flat Top	Surface Mount	130 °	2 V 2 V	0.8 mm	30mcd Red 30mcd Yellow-Green	1.9 mm	1.6 mm	0606	1.2 mm	1.1 mm	20 mA 20 mA	Colorless	Red Yellow-Green	Clear	Independent	0606 1616 Metric
Everlight Electronics Co Ltd QTLP600CYTR		Rectangle with Flat Top	Surface Mount	100 °	2.1 V	0.8 mm		1.6 mm	0.8 mm		1.2 mm	0.8 mm	20 mA	Colorless	Yellow	Clear	Standard		40 mcd	590 nm	0603 (1608 Metric)
Everlight Electronics Co Ltd QTLP600CAGTR	573 nm	Rectangle with Flat Top	Surface Mount	100 °	2 V	0.8 mm		1.6 mm	0.8 mm		1.2 mm	0.8 mm	20 mA	Colorless	Yellow-Green	Clear	Standard		15 mcd	575 nm	0603 (1608 Metric)
Everlight Electronics Co Ltd QTLP600CEBTR			Surface Mount	100 °	2.8 V	0.8 mm		1.6 mm	0.8 mm				5 mA	Colorless	Blue	Clear	Standard		25 mcd	465 nm	0603 (1608 Metric)
Everlight Electronics Co Ltd QTLP600CRTR		Rectangle with Flat Top	Surface Mount	100 °	2 V	0.8 mm		1.6 mm	0.8 mm		1.2 mm	0.8 mm	20 mA	Colorless	Red	Clear	Standard		40 mcd	630 nm	0603 (1608 Metric)
Everlight Electronics Co Ltd QTLP600C34TR	570 nm 590 nm	Rectangle with Flat Top	Surface Mount	130 °	2 V 2.1 V	0.8 mm	12.5mcd Green 4mcd Yellow	1.9 mm	1.6 mm	0606	1.2 mm	1.1 mm	20 mA 20 mA	Colorless	Green Yellow	Clear	Independent			565 nm 585 nm	4-SMD No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.19
		10	$ 0.13
		100	$ 0.09
		500	$ 0.07
		1000	$ 0.07
	Digi-Reel®	1	$ 0.19
		10	$ 0.13
		100	$ 0.09
		500	$ 0.07
		1000	$ 0.07
	Tape & Reel (TR)	2000	$ 0.06
		4000	$ 0.06
		6000	$ 0.05
		10000	$ 0.05
		14000	$ 0.05
		20000	$ 0.05
		50000	$ 0.05
		100000	$ 0.04
		200000	$ 0.04

Description

General part information

QTLP600 Series

Yellow LED Indication - Discrete 2.1V 0603 (1608 Metric)

Documents

Technical documentation and resources
