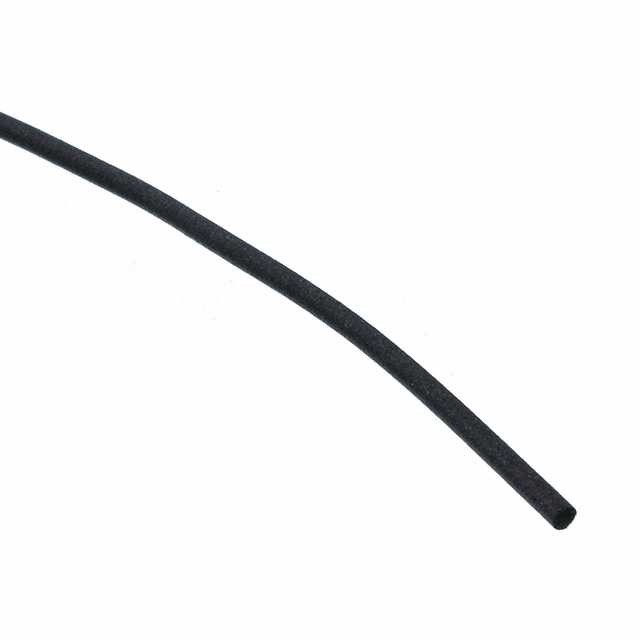

10-04-2657-S6305

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL FEET

Search across all available documentation for this part.

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL FEET

Technical Specifications

Parameters and characteristics for this part

Specification	10-04-2657-S6305

Attachment Method	No Adhesive
Length	Enter Number of Feet in Order Quantity
Material	Conductive Elastomer
Operating Temperature [Max]	66 °C
Operating Temperature [Min]	-29 °C
Plating	Nickel
Shape	Round
Spool Size [custom]	30.48 m
Spool Size [custom]	100 ft
Type	Gasket
Width [x]	2.03 mm
Width [x]	0.08 "

Part	Plating	Width [x]	Width [x]	Attachment Method	Type	Operating Temperature [Max]	Operating Temperature [Min]	Material	Shape	Width	Width	Length	Spool Size [custom]	Spool Size [custom]	Width [y]	Width [y]	Spool Size	Spool Size
Parker Chomerics 10-04-8363-6502	Nickel	2.62 mm	0.103 in	No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round
Parker Chomerics 10-04-W204-1298					Gasket	66 °C	-29 °C		Round	3.17 mm	0.125 in
Parker Chomerics 10-04-9732-6502	Nickel	2.03 mm	0.08 "	No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round			Enter Number of Feet in Order Quantity	30.48 m	100 ft
Parker Chomerics 10-04-W163-S6305	Nickel			No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round			Enter Number of Feet in Order Quantity			1.57 mm	0.062 in	600 '	182.88 m
Parker Chomerics 10-04-2865-6502	Nickel			No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round			Enter Number of Feet in Order Quantity	30.48 m	100 ft	2.36 mm	0.093 in
Parker Chomerics 10-04-W204-S6305	Nickel			No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round	3.17 mm	0.125 in
Parker Chomerics 10-04-2657-6502	Nickel	2.03 mm	0.08 "	No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round			Enter Number of Feet in Order Quantity	30.48 m	100 ft
Parker Chomerics 10-04-6386-1298					Gasket	66 °C	-29 °C		Round	1.02 mm		Enter Number of Feet in Order Quantity				0.04 in
Parker Chomerics 10-04-2657-S6305	Nickel	2.03 mm	0.08 "	No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round			Enter Number of Feet in Order Quantity	30.48 m	100 ft
Parker Chomerics 10-04-1687-6502	Nickel			No Adhesive	Gasket	66 °C	-29 °C	Conductive Elastomer	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
