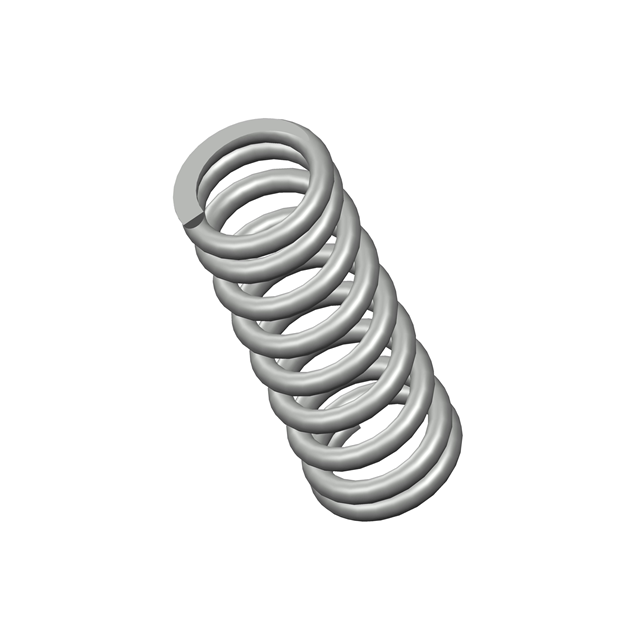

A15-58CS

Active

Century Spring Corp

COMP O= .296,L= .81,W= .044

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A15-58CS

Active

Century Spring Corp

COMP O= .296,L= .81,W= .044

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A15-58CS

Diameter - Inside [diameter]	5.28 mm
Diameter - Inside [diameter]	0.208 "
Diameter - Outside [diameter]	0.296 in
Diameter - Outside [diameter]	7.52 mm
End Style	Ground, Closed
Finish	Gold Iridite
Free Length	0.81 in
Free Length	20.57 mm
Material	Spring Steel
Rate	46 lbs/in
Wire Diameter [diameter]	1.12 mm
Wire Diameter [diameter]	0.044 in

A15 Series

Part	End Style	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter	Wire Diameter	Free Length	Free Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Rate	Material	Finish	Diameter - Inside [diameter]	Type	Free Length [x]	Free Length [x]	Wire Diameter [diameter]	Wire Diameter [diameter]	Diameter - Inside [diameter]
Century Spring Corp A15-52CS	Closed Ground	0.859 in	21.82 mm	1.55 mm	0.061 in	1.25 in	31.75 mm	0.737 in	18.72 mm	14 lbs/in	Stainless Steel	None
Century Spring Corp A15-57CS	Closed Ground	0.546 in	13.87 mm	1.14 mm	0.045 "	0.81 in	20.57 mm		11.58 mm	14 lbs/in	Stainless Steel	None	0.456 "	Compression
Century Spring Corp A15-33CS	Closed Ground	0.468 in	11.89 mm	1.19 mm	0.047 in	0.81 in	20.57 mm	0.374 in	9.5 mm	21 lbs/in	Stainless Steel	None
Century Spring Corp A15-49CS	Closed Ground	0.109 in	2.77 mm	0.46 mm	0.018 in			0.073 in	1.85 mm	33 lbs/in	Music Wire	None			7.11 mm	0.28 in
Century Spring Corp A15-54CS	Closed	0.36 in	9.14 mm	0.84 mm	0.033 in	1.53 in	38.86 mm	0.294 in	7.47 mm	6 lbs/in	Music Wire	None
Century Spring Corp A15-43CS	Closed Ground	0.562 in	14.27 mm	1.32 mm	0.052 in	0.53 in	13.46 mm	0.458 in	11.63 mm	23 lbs/in	Stainless Steel	None
Century Spring Corp A15-31CS	Closed Ground	0.296 in	7.52 mm	1.07 mm	0.042 in	0.41 in	10.41 mm	0.212 in	5.38 mm	96 lbs/in	Stainless Steel	None		Compression
Century Spring Corp A15-44CS	Closed Ground	0.437 "	11.1 mm					0.355 in	9.02 mm	26 lbs/in	Spring Steel	None					0.041 in	1.04 mm
Century Spring Corp A15-58CS	Closed Ground	0.296 in	7.52 mm			0.81 in	20.57 mm		0.208 "	46 lbs/in	Spring Steel	Gold Iridite					0.044 in	1.12 mm	5.28 mm
Century Spring Corp A15-28CS	Closed	0.266 in	6.76 mm			1.09 in	27.69 mm		0.194 in	15 lbs/in	Spring Steel	Zinc		Compression			0.036 in	0.91 mm	4.93 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.80
		50	$ 2.68
		150	$ 2.54
		300	$ 2.40
		500	$ 2.12

Description

General part information

A15 Series

COMP O= .296,L= .81,W= .044

Documents

Technical documentation and resources
