LF13WBRB-20P

Active

Hirose Electric USA, Inc.

CONN RCPT MALE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LF13WBRB-20P

Active

Hirose Electric USA, Inc.

CONN RCPT MALE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LF13WBRB-20P

Applications	Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.2 Ám
Contact Finish Thickness - Mating	7.87 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	13
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VAC, 42 VDC

LF13WBRB Series

Part	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Termination	Number of Positions	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shell Size - Insert	Shielding	Fastening Type	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Color	Contact Material	Orientation	Contact Finish - Mating	Shell Material	Shell Finish	Applications	Mounting Feature
Hirose Electric USA, Inc. LF13WBRB-11P	IP67/IP68 - Dust Tight Waterproof	0.2 Ám	7.87 Áin	Metal	Solder	11	Polyphenylene Sulfide (PPS)	Male Pins Receptacle	-25 °C	85 °C	30 VAC 42 VDC	13	Shielded	Bayonet Lock	Panel Mount Through Hole	2 A	UL94 V-0	Silver	Copper Alloy	Keyed	Gold	Zinc Alloy	Nickel	Industrial Telecommunications	Bulkhead - Front Side Nut
Hirose Electric USA, Inc. LF13WBRB-11S	IP67/IP68 - Dust Tight Waterproof	0.203 Ám	8 Áin	Metal		11	Polyphenylene Sulfide (PPS)	Receptacle Female Sockets	-25 °C	85 °C		13		Bayonet Lock		2 A 10 A	UL94 V-0	Silver	Copper Alloy	Keyed	Gold	Zinc Alloy	Nickel	Industrial Telecommunications	Bulkhead - Front Side Nut
Hirose Electric USA, Inc. LF13WBRB-20P	IP67/IP68 - Dust Tight Waterproof	0.2 Ám	7.87 Áin	Metal	Solder	20	Polyphenylene Sulfide (PPS)	Male Pins Receptacle	-25 °C	85 °C	30 VAC 42 VDC	13	Shielded	Bayonet Lock	Panel Mount Through Hole	2 A	UL94 V-0	Silver	Copper Alloy	Keyed	Gold	Zinc Alloy	Nickel	Industrial Telecommunications	Bulkhead - Front Side Nut
Hirose Electric USA, Inc. LF13WBRB-20SD	IP67/IP68 - Dust Tight Waterproof			Metal	Solder	20	Polyphenylene Sulfide (PPS)	Receptacle Female Sockets	-25 °C	85 °C	30 VAC 42 VDC	13	Shielded	Bayonet Lock	Panel Mount Through Hole	2 A	UL94 V-0	Silver	Copper Alloy	Keyed	Gold	Zinc Alloy	Nickel	Industrial Telecommunications	Bulkhead - Front Side Nut
Hirose Electric USA, Inc. LF13WBRB-20S	IP67/IP68 - Dust Tight Waterproof	0.203 Ám	8 Áin	Metal		20	Polyphenylene Sulfide (PPS)	Receptacle Female Sockets	-25 °C	85 °C	30 VAC 42 VDC	13		Bayonet Lock		2 A	UL94 V-0	Silver	Copper Alloy	Keyed	Gold	Zinc Alloy	Nickel	Industrial Telecommunications	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 27.65
		20	$ 24.22
		40	$ 22.42
		100	$ 21.67
		260	$ 20.48
		500	$ 19.88

Description

General part information

LF13WBRB Series

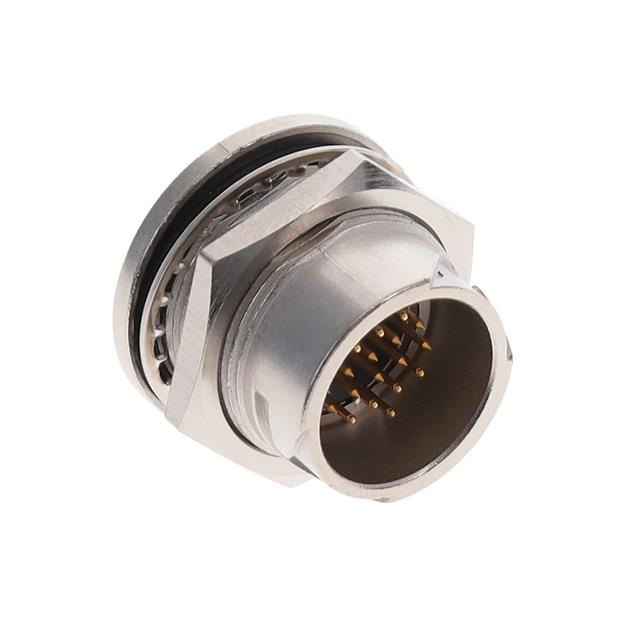

20 Position Circular Connector Receptacle, Male Pins Solder
