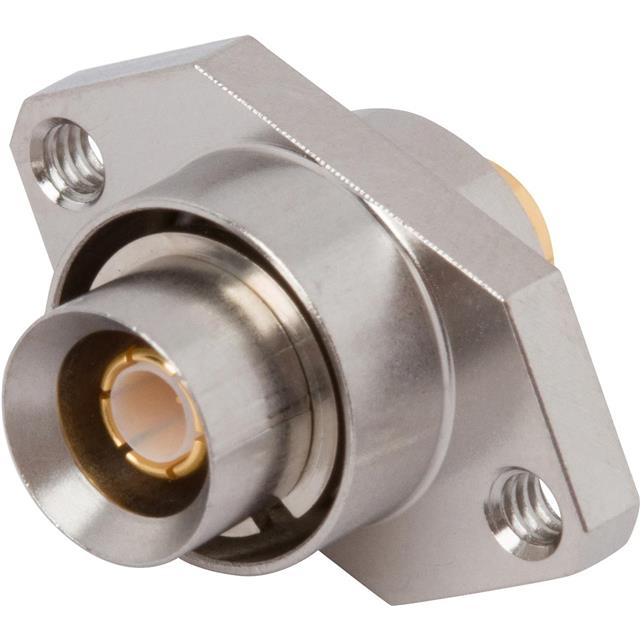

SF8901-6003

Active

Amphenol SV Microwave

CONN BMZ PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN BMZ PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF8901-6003

Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMZ
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder

Part	Body Material	Center Contact Plating	Connector Type	Dielectric Material	Number of Ports	Housing Color	Frequency - Max [Max]	Impedance	Contact Termination	Center Contact Material	Mounting Feature	Mating Cycles	Fastening Type	Connector Style	Shield Termination	Cable Group	Cable Group
Amphenol SV Microwave SF8901-6003	Stainless Steel	Gold	Male Pin Plug	Polytetrafluoroethylene (PTFE)	1	Silver	18 GHz	50 Ohms	Solder	Beryllium Copper	Flange	500	Snap-On	BMZ	Solder	RG-402 (.141" Flexible)	0.141 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 163.25

General part information

BMZ Connector Plug, Male Pin 50 Ohms Panel Mount Solder
