2413C SL005

Active

ALPHA WIRE

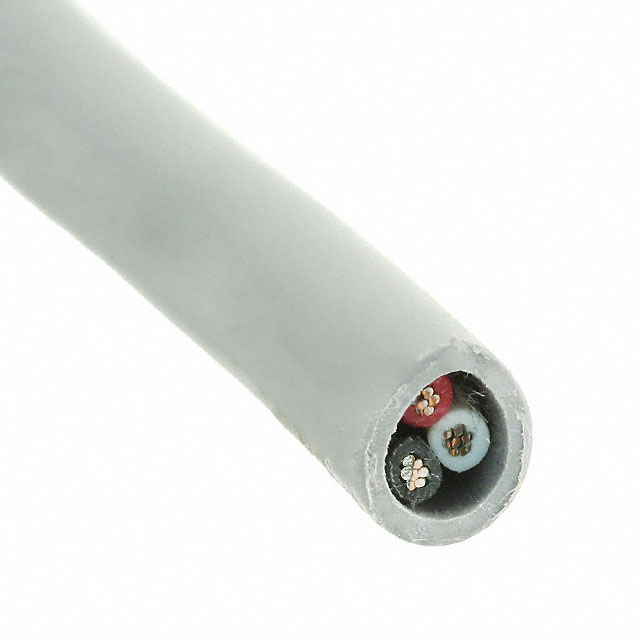

CABLE 3CON 20AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3CON 20AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	2413C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Material	Length [x]	Length [x]	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Shield Type	Shield Coverage	Usage	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Features	Shield Material	Length	Length
ALPHA WIRE 2413C SL005	Copper Tinned	30.5 m	100 ft	Multi-Conductor	Polyethylene (PE)	28	7	300 V	Foil	100 %	Communication Control	3	0.02 in	0.508 mm	20 AWG	Slate	0.195 in	4.95 mm	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum
ALPHA WIRE 2413C SL021	Copper Tinned			Multi-Conductor	Polyethylene (PE)	28	7	300 V	Foil	100 %	Communication Control	3	0.02 in	0.508 mm	20 AWG	Slate	0.195 in	4.95 mm	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 100.43

General part information

3 Conductor Multi-Conductor Cable Slate 20 AWG Foil 100.0' (30.5m)
