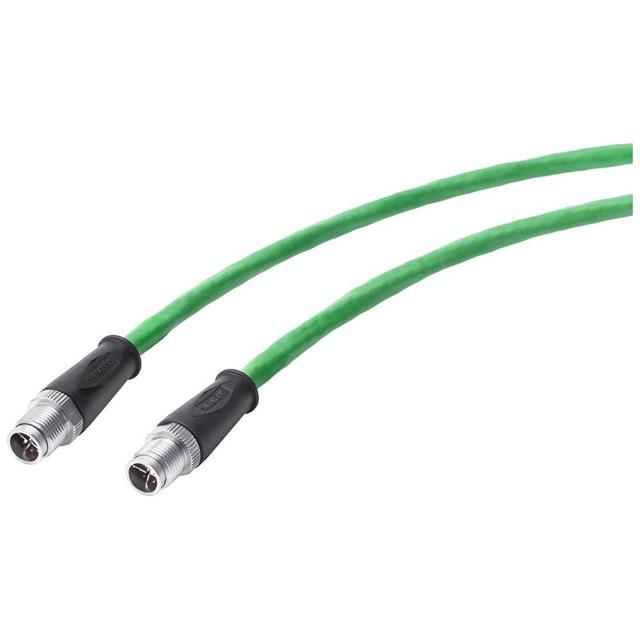

6XV18785HH15

Active

Siemens

CBL CIRC 8POS MALE TO MALE 4.92'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6XV18785HH15

Active

Siemens

CBL CIRC 8POS MALE TO MALE 4.92'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6XV18785HH15

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	X
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	X
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Green
Length	4.92 '
Length	1.5 m
Shielding	Shielded

6XV18785 Series

Part	Cable Type	Shielding	Color	Connector Type	1st Connector Number of Positions	Assembly Configuration	1st Connector Type	2nd Connector Number of Positions Loaded	2nd Connector Orientation	1st Connector Number of Positions Loaded	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Orientation	2nd Connector Type	1st Connector Shell Size - Insert	Cable Material	2nd Connector Number of Positions	1st Connector Gender	Length [x]	Length [x]	Length	Length	Mounting Type	Style	Number of Positions/Contacts
Siemens 6XV18785SH50	Round	Shielded	Green	Circular 08 pos Male Right Angle to RJ45 8p8c
Siemens 6XV18785HE30	Round	Shielded	Green		8 positions	Standard	Receptacle	All	X	All	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	X	Receptacle	M12	Polyurethane (PUR)	8	Male Pins
Siemens 6XV18785HN15	Round	Shielded	Green		8 positions	Standard	Receptacle	All	X	All	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	X	Receptacle	M12	Polyurethane (PUR)	8	Male Pins	15 m	49.2 ft
Siemens 6XV18785HH30	Round	Shielded	Green		8 positions	Standard	Receptacle	All	X	All	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	X	Receptacle	M12	Polyurethane (PUR)	8	Male Pins	3 m	9.84 ft
Siemens 6XV18785TH10	Round	Shielded	Green	Circular 08 pos Male to RJ45 8p8c																1 m	3.28 ft
Siemens 6XV18785HH15	Round	Shielded	Green		8 positions	Standard	Receptacle	All	X	All	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	X	Receptacle	M12	Polyurethane (PUR)	8	Male Pins			4.92 '	1.5 m
Siemens 6XV18785TN10	Round	Shielded	Green	Circular 08 pos Male to RJ45 8p8c																		32.81 ft	10 m
Siemens 6XV18785BN25	Round Cable	Shielded	Green	Plug to Plug																25 m	82.02 ft			Free Hanging (In-Line)	Cat5e	8p8c (RJ45 Ethernet)
Siemens 6XV18785GH10	Round	Shielded	Green		8 positions	Standard	Receptacle Right Angle	All	X	All	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	X	Receptacle Right Angle	M12	Polyurethane (PUR)	8	Male Pins	1 m	3.28 ft
Siemens 6XV18785BN15	Round Cable	Shielded	Green	Plug to Plug																15 m	49.21 '			Free Hanging (In-Line)	Cat5e	8p8c (RJ45 Ethernet)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 102.68

Description

General part information

6XV18785 Series

Cable Assembly 4.92' (1.50m)
