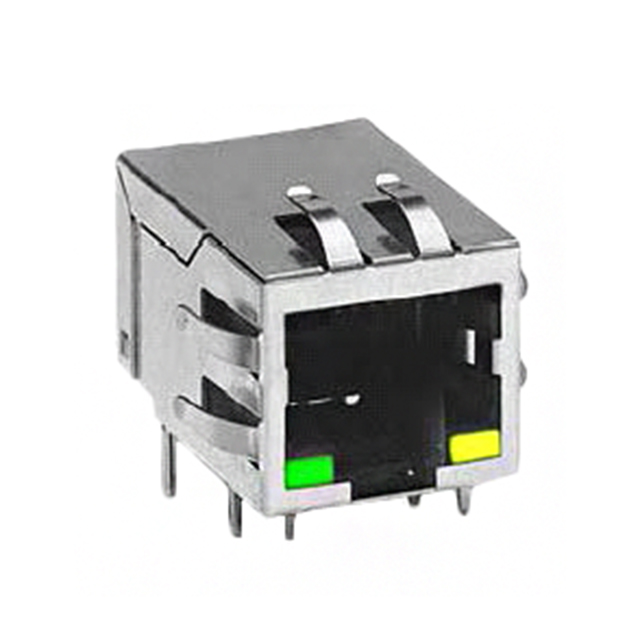

J1B1211CCD
ActiveWIZnet
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
J1B1211CCD
ActiveWIZnet
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | J1B1211CCD |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Brass |
| Features | Board Guide |
| Height Above Board | 0.526 in |
| Height Above Board | 13.36 mm |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shield Material | Brass |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.83 | |
| 10 | $ 3.48 | |||
| 25 | $ 3.29 | |||
| 50 | $ 3.21 | |||
| 120 | $ 3.06 | |||
| 360 | $ 2.68 | |||
| 600 | $ 2.60 | |||
| 1080 | $ 2.31 | |||
Description
General part information
J1B1211 Series
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
