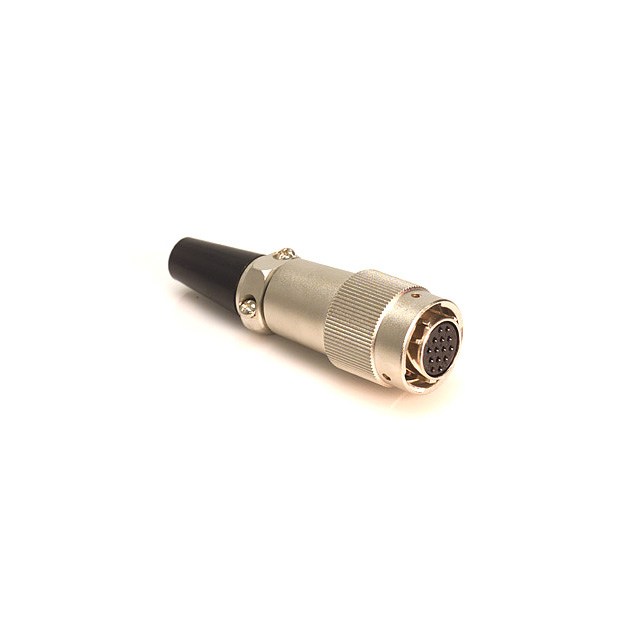

JRC16BP-14S(71)
LTBHirose Electric USA, Inc.
CONN PLUG FMALE 14P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JRC16BP-14S(71)
LTBHirose Electric USA, Inc.
CONN PLUG FMALE 14P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JRC16BP-14S(71) |
|---|---|
| Backshell Material, Plating | Aluminum Alloy, Nickel |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Features | Backshell, Strain Relief, Clamp, Coupling Nut |
| Insert Material | Phenol Formaldehyde (PF) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 16 |
| Shielding | Unshielded |
| Voltage Rating | 350 V, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.33 | |
| 10 | $ 35.85 | |||
| 25 | $ 32.53 | |||
| 50 | $ 30.29 | |||
Description
General part information
JRC16BP Series
14 Position Circular Connector Plug, Female Sockets Solder Cup
